Default .38 Special LSWC keyholing

Hello all,

I noticed some interesting effects with one of my .38 Special handloads. Hornady 158 grs LSWC HP and 5.2 grs VV N340, chronoed 833 ft/s from my Model 27 4" tends to keyhole. I don't think this velocity might be too much for the swaged bullet, so what might be the reason? The load is keyholing as well from my 27 5" and my 13 3". Some impacting sideways with the 13 even at short distance...

on the other hand: Speer 158 grs LSWC HP and 5.8 grs Vectan Ba9, chronoed 879 ft/s from my Model 27 4" behaves as it should. I can't imagine the bullet being much harder than the Hornady as it is swaged as well (AFAIK).

Is there something I should have missed about the bullets or the
propellant or the guns?

regards from Germany
Ulrich
__________________
Life is too short to own a bad gun
Reply With Quote
The Following 2 Users Like Post:
  #2
Old 05-14-2020, 03:47 PM
Nevada Ed's Avatar
Nevada Ed Nevada Ed is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Nov 2012
Location: Reno Nv
Posts: 8,510
Likes: 885
Liked 5,828 Times in 2,857 Posts
Default

You might try a few medium loads with 330 or 320 powder if you have any
to see if the keyholing will stop.

Hard to tell if it is bullet fit or speed that is doing it, until you
try out a few different things, to narrow it down.

Sorry that 158 bullet is not behaving.
Good luck.
Reply With Quote
The Following 2 Users Like Post:
  #3
Old 05-14-2020, 05:43 PM
Qc Pistolero Qc Pistolero is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: May 2016
Location: 30min SE Montreal
Posts: 1,896
Likes: 145
Liked 1,365 Times in 772 Posts
Default

Load no 1 keyholes in 3 different guns and shoots straight with load no 2.Problem not with the guns.
Check if any difference in diameter of the 2 brands of bullets.
While I'm not familiar with Vectan powders,it might be a different rate of combustion changes the behavior of the bullets.I'd try as suggested by Nevada to make sure.
Depth of hollow point,if much different changes the lenght and balance of the bullet.Too long a bullet might not stabilize well in the long twist of the S&W(1:18 3/4'').So check total lenght of both bullets.
Please feed us back on what you find as it might help other shooters.Good luck.
Reply With Quote
The Following 2 Users Like Post:
  #4
Old 05-14-2020, 07:00 PM
max's Avatar
max max is online now
US Veteran
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Mar 2001
Location: illinois
Posts: 5,006
Likes: 1,010
Liked 3,912 Times in 1,288 Posts
Default

The Hornady bullets are swaged lead and are very soft. It is possible that you are loading them hot enough that they are not engaging the rifling and just going down the barrel like it was a smooth bore. I had that happen with some lead 9mm bullets years ago.
Reply With Quote
The Following 5 Users Like Post:
  #5
Old 05-14-2020, 10:00 PM
RodD RodD is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Aug 2017
Posts: 51
Likes: 16
Liked 62 Times in 27 Posts
Default

Bullets stripping in rifling. Soft alloy snd too much pressure. Try to recover a fired bullet and look at the rifling engraving.
Reply With Quote
The Following 2 Users Like Post:
  #6
Old 05-15-2020, 07:11 AM
Daimler1989 Daimler1989 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Jun 2009
Location: Germany
Posts: 249
Likes: 295
Liked 321 Times in 79 Posts
Default

Quote:
Originally Posted by RodD View Post
Bullets stripping in rifling. Soft alloy snd too much pressure. Try to recover a fired bullet and look at the rifling engraving.

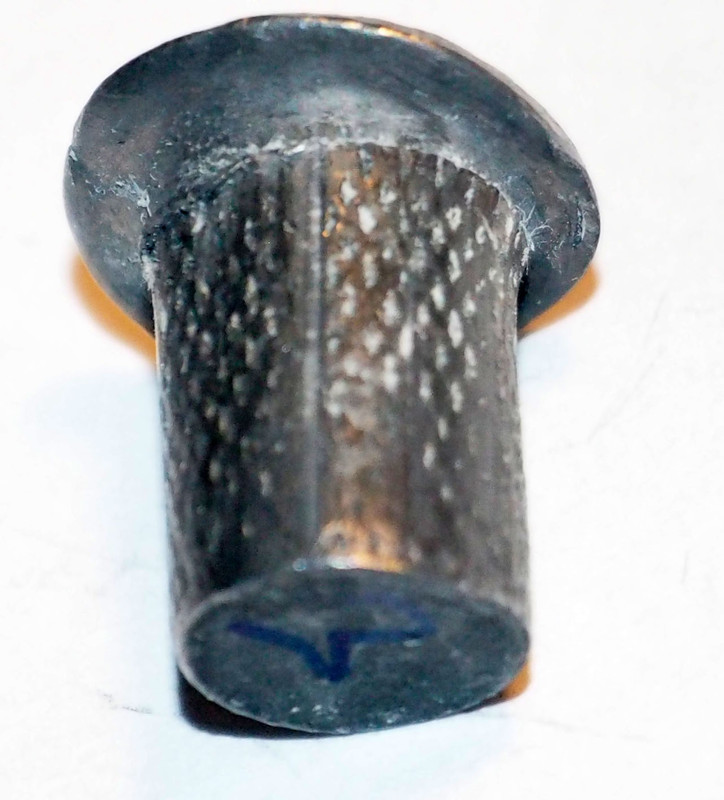

Thanks everyone for your input, really appreciated. I checked a bullet I retrieved some time ago, rifling engraving seems not to be existing consitently. I tried some photographs, sorry for the quality.

regards
Ulrich

[IMG][/IMG]

[IMG][/IMG]


[IMG][/IMG]
__________________
Life is too short to own a bad gun
Reply With Quote
The Following User Likes This Post:
  #7
Old 05-15-2020, 09:45 AM
boatbum101 boatbum101 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Oct 2005
Location: Pensacola,FL
Posts: 1,474
Likes: 2,829
Liked 759 Times in 387 Posts
Default

IMHO the Hornady bullets are too soft & / or undersized for your gun . The Speer bullets are harder than the Hornady believe it or not . To acertain what the problem is I would : 1) Measure cylinder throats as they need to be larger than bore diameter . If not they need to be honed or reamed . In a revolver bullets are sized to cylinder throat diameter . 2) Slug the bore . Drive a greased pure lead ball or fishing sinker thru barrel . Take the sized slug & check cylinder throats . It should pass thru all throats with no more than light finger pressure . If not cylinder throats are too small & need to be opened up as stated above . S&W have 5 groove barrels & one needs special tools to accurately measure bore diameter . 3) Check barrel for tight spots / bore restriction , if present for best results tight spots should be lapped out . If all that checks good I'd either get different lead bullets or jacketed & see how they shoot . Soft lead swaged bullets are for mild lower pressure loads . If sized to fit & with a good lube they should be good at velocity of your VVN-340 load . I use swaged lead bullets ( Zero brand ) in my 38 special ( 148gr HBWC ) & my 45acp target 1911's ( 200gr SWC ) . My loads run around 720fps for the 38 & around 780fps for the 45's . I hope this helps . Personally I do not use either the Speer or Hornady swaged lead bullets as they cost more than the Remington , Zero or Magtech swaged & usually do not shoot as well . Does your 27 have a newer EDM barrel ? Because of rifling design they do not shoot lead as well as the older vintage broach rifled barrels . They do just fine with jacketed .

Last edited by boatbum101; 05-15-2020 at 09:49 AM.
Reply With Quote
The Following 4 Users Like Post:
  #8
Old 05-15-2020, 12:29 PM
Nevada Ed's Avatar
Nevada Ed Nevada Ed is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Nov 2012
Location: Reno Nv
Posts: 8,510
Likes: 885
Liked 5,828 Times in 2,857 Posts
Default

in post #6,
the marks on the bullet looks very light, which makes me believe that this brand might be just a little undersized for your barrel?

Here is a picture of two lead bullets at target speeds out of my 38 J frame snub nose.

Reply With Quote
The Following 6 Users Like Post:
  #9
Old 05-16-2020, 11:20 AM
stansdds stansdds is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Apr 2007
Location: Virginia
Posts: 3,035
Likes: 2,762
Liked 3,418 Times in 1,687 Posts
Default

I agree with Nevada Ed, the lack of engraving says undersized bullet, especially since you get the same results in different revolvers of the same caliber.
__________________
VCDL, GOA, NRA
Reply With Quote
The Following 3 Users Like Post:
  #10
Old 05-16-2020, 11:46 AM
johngalt johngalt is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Feb 2007
Location: St. Paul (smokey!) MN
Posts: 3,682
Likes: 291
Liked 3,447 Times in 1,439 Posts
Default

Years ago I experimented with Viht N310 and Hornady 148 HBWC. They were impressively accurate but very sensitive to the load. At 2.7 gr, they worked great. Much higher and they started to wobble much more than with Bullseye. I suspect pressure spikes much more quickly than with Bullseye.

I have never used N340, so I don't know if it behaves the same, but you might try reducing the load and see if the bullets stabilize.
__________________
Common sense isn't so common.
Reply With Quote
The Following User Likes This Post:
  #11
Old 05-16-2020, 03:57 PM
Daimler1989 Daimler1989 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Jun 2009
Location: Germany
Posts: 249
Likes: 295
Liked 321 Times in 79 Posts
Default

Thanks everyone,

I guess I have to check other retrieved bullets for rifling marks, but as far as I remember they looked quite ok to me. Hornady LSWC are the only bullets I have problems with keyholing, so the idea of them being undersized might point in the reight direction.

But how can that happen? They are advertised as being .358 in diameter. Cast SWC 158 grs with .357 diameter don't make any problems in my 3 .357 revolvers (27-2 5", 27-3 4", 13-2 3") nor do Speer LSCWHP 158 grs .358 or H&N copper plated SWC .357 158 grs, no matter if they are pushed a little bit harder (the Speer chronoed from my 4" is 879 ft/s, thus faster than the Hornady, but shows no tendency to keyhole). They all seem to have the correct diameter as advertised.

regards from Germany
Ulrich
__________________
Life is too short to own a bad gun
Reply With Quote
  #12
Old 05-16-2020, 07:15 PM
fredj338's Avatar
fredj338 fredj338 is online now
Member

Join Date: Feb 2006
Location: Kalif. usa
Posts: 6,366
Likes: 2,255
Liked 3,512 Times in 2,147 Posts
Default

Check the dia of your bullets. Keyholing is almost always a bullet too small or a base with a serious defect. I nly shoot harder cast bullets, but at your vel, the alloy should be fine, susoect bullet size.
__________________
NRA Cert. Inst. IDPA CSO
Reply With Quote
The Following User Likes This Post:
  #13
Old 05-16-2020, 07:20 PM
fredj338's Avatar
fredj338 fredj338 is online now
Member

Join Date: Feb 2006
Location: Kalif. usa
Posts: 6,366
Likes: 2,255
Liked 3,512 Times in 2,147 Posts
Default

Quote:
Originally Posted by Daimler1989 View Post
Thanks everyone,

I guess I have to check other retrieved bullets for rifling marks, but as far as I remember they looked quite ok to me. Hornady LSWC are the only bullets I have problems with keyholing, so the idea of them being undersized might point in the reight direction.

But how can that happen? They are advertised as being .358 in diameter. Cast SWC 158 grs with .357 diameter don't make any problems in my 3 .357 revolvers (27-2 5", 27-3 4", 13-2 3") nor do Speer LSCWHP 158 grs .358 or H&N copper plated SWC .357 158 grs, no matter if they are pushed a little bit harder (the Speer chronoed from my 4" is 879 ft/s, thus faster than the Hornady, but shows no tendency to keyhole). They all seem to have the correct diameter as advertised.

regards from Germany
Ulrich
It happens all the time, a mis aligned piece of equip & a run gets done wrong. I have had this happen with plated bullets. Simple, just slap calipers on a few & see.
__________________
NRA Cert. Inst. IDPA CSO

Last edited by fredj338; 05-17-2020 at 11:59 AM.
Reply With Quote
The Following 2 Users Like Post:
  #14
Old 05-24-2020, 11:17 AM
tputto tputto is offline
Member

Join Date: May 2005
Location: Finland
Posts: 20
Likes: 0
Liked 14 Times in 7 Posts
Default

How do you crimp your loads? Did you notice which shots out of the cylinder went sideways? I had some similar Hornady bullets and remember them being slippery in the case, and if not crimped they could be pushed in by hand. I suspect a slippery bullet could be pulled out by recoil and you'd have less pressure and velocity for that bullet, causing the wobble. You can check for that by looking at your remaining rounds after 3 or 4 shots. However, if wobbling occurs even on first shot then it must be caused by something else.
Reply With Quote
The Following User Likes This Post:
  #15
Old 05-24-2020, 02:15 PM
Spokes Spokes is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Feb 2008
Location: S.E.Florida
Posts: 321
Likes: 193
Liked 236 Times in 140 Posts
Default

I have always had problems with that bullet as fred338 said...
__________________
NRA Benefactor
Reply With Quote
The Following User Likes This Post:
  #16
Old 05-25-2020, 09:24 AM
Groo01's Avatar
Groo01 Groo01 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Jan 2008
Location: ohio
Posts: 1,253
Likes: 781
Liked 677 Times in 412 Posts
Default

Groo here
INCREASE the load to similar speed of the one that works.
The soft bullet should be able to swell up to fill the bore IF
the pressure is correct.
Bullseye is good for this as it "hits" [pressure spike] fast and
this allows the bullet to swell.
Also , many think that such a load need not be crimped ,,WRONG....
Use a good heavy crimp to allow the powder pressure push the bullet
from the case,,,not the primer.....
Ever see a factory Match round NOT crimped???????????????????????
Reply With Quote
The Following 4 Users Like Post:
  #17
Old 05-25-2020, 12:11 PM
mikld's Avatar
mikld mikld is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: May 2012
Location: S. Orygun
Posts: 1,741
Likes: 1,151
Liked 1,033 Times in 603 Posts
Default

Quote:
Originally Posted by max View Post
The Hornady bullets are swaged lead and are very soft. It is possible that you are loading them hot enough that they are not engaging the rifling and just going down the barrel like it was a smooth bore. I had that happen with some lead 9mm bullets years ago.
Yep, "skidding" on the rifling can happen easily when driving a soft, swaged bullet......
Reply With Quote
The Following User Likes This Post:
  #18
Old 05-25-2020, 12:27 PM
4barrel's Avatar
4barrel 4barrel is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Jan 2012
Location: OVER the hill in TEJAS
Posts: 2,017
Likes: 10,752
Liked 3,187 Times in 1,291 Posts
Default

N340 is one of my favorite powders. I loaded some 44 mag with it last night. Slow it down to 750 fps? If you have some alox give it a coat and let set over night. Lee is the best. I have tried that bullet years ago but found something I liked better but I never went over 750 fps. I use a medium roll crimp in my 38 wheel guns with that style boolit.

Last edited by 4barrel; 05-25-2020 at 12:32 PM.
Reply With Quote
The Following User Likes This Post:
  #19
Old 05-25-2020, 01:03 PM
pistolpete10 pistolpete10 is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Mar 2020
Posts: 29
Likes: 0
Liked 17 Times in 12 Posts
Default

I've shot a lot of Hornady 148 hbwc bullets over the years.. Never had one keyhole. I do see some wobble, can tell on the target that they don't always hit it dead straight. I don't shoot at high velocity, they ain't made for that. I shoot a light load of 231, keep velocity below 750, use a light crimp. The old bullet lube Hornady used seemed better but I haven't had any leading problems with the new stuff.
Reply With Quote
The Following User Likes This Post:
  #20
Old 05-25-2020, 03:48 PM
Carrier Carrier is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Jul 2014
Posts: 362
Likes: 67
Liked 197 Times in 108 Posts
Default

I shoot a lot of the Hornady wadcutters and never had any issues.Out of my 14-3 with a 8 barrel it is a tack driver at 25 yards with 2.7 grains of Bullseye.
Reply With Quote
The Following User Likes This Post:
  #21
Old 05-26-2020, 09:53 AM
colt_saa's Avatar
colt_saa colt_saa is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Feb 2005
Location: Cocoa Beach, Florida
Posts: 8,406
Likes: 1,407
Liked 14,412 Times in 4,093 Posts
Default

Quote:
Originally Posted by pistolpete10 View Post
I've shot a lot of Hornady 148 hbwc bullets over the years.. Never had one keyhole.
I too have shot thousands of the Hornady HBWCs with no problems

However the projectile in question is the Hornady SWCHP

Daimler1989,
You mentioned that the recovered projectile you have photographed is an old one. Is it from the same batch of projectiles that is giving you trouble? Did that load also keyhole?

If not, looking at one of the current, keyholeing projectiles would be a good idea.

And you need to measure the diameter of those projectiles.
__________________
"Acta non verba"

Last edited by colt_saa; 05-26-2020 at 11:15 AM.
Reply With Quote
The Following 2 Users Like Post:
  #22
Old 05-26-2020, 11:45 AM
pistolpete10 pistolpete10 is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Mar 2020
Posts: 29
Likes: 0
Liked 17 Times in 12 Posts
Default

I guess I missed that they were SWCHP. I recently bought some to load for my 642 revolver. So far I've gotten bullet jump on the 5th bullet almost 100% of the time. The bullets measure .357, just not tight enough in the cases. Last I fired were loaded in GI cases, they are a little tighter, still got a little jump on some of them. This being said, the bullets were accurate and hit the target perfectly straight, no tilt or keyhole what so ever. Out of the 2" bbl they prolly weren't doing 700 fps. I didn't shoot any over the Chrony. They do have healthy recoil in the 642.
Reply With Quote
The Following User Likes This Post:
  #23
Old 05-26-2020, 01:07 PM
colt_saa's Avatar
colt_saa colt_saa is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Feb 2005
Location: Cocoa Beach, Florida
Posts: 8,406
Likes: 1,407
Liked 14,412 Times in 4,093 Posts
Default

Quote:
Originally Posted by pistolpete10 View Post
I guess I missed that they were SWCHP. I recently bought some to load for my 642 revolver. So far I've gotten bullet jump on the 5th bullet almost 100% of the time. The bullets measure .357, just not tight enough in the cases. Last I fired were loaded in GI cases, they are a little tighter, still got a little jump on some of them. This being said, the bullets were accurate and hit the target perfectly straight, no tilt or keyhole what so ever. Out of the 2" bbl they prolly weren't doing 700 fps. I didn't shoot any over the Chrony. They do have healthy recoil in the 642.
Pete,
If you have a set of 9MM dies on hand, try putting that expander plug into your 38 special die. This may be too small but does not alter parts

My preferred solution would be to reduce the diameter of your 38 special expander by about .001.

This should greatly improve your case tension on the bullet
__________________
"Acta non verba"
Reply With Quote
The Following 2 Users Like Post:
  #24
Old 05-26-2020, 01:11 PM
Daimler1989 Daimler1989 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Jun 2009
Location: Germany
Posts: 249
Likes: 295
Liked 321 Times in 79 Posts
Default

Hi,
thanks everyone again for new input. I slugged the barrels and chamber throads of all my .357 Magnum revolvers, but the batteries of my caliper are empty and need to be replaced. So no exact data at the moment.

BUT: I went the easy way an tried to pass several bullets through the chambers. Interesting. Speer LSWCHP and a hardcast SWC I regularly use don't pass through. Both advertised as.358 diameter. The Hornady LSWC HP FALLS through. Altough it should have .358 diameter as well...

I have no possibility to use a new Hornady as they are all loaded. I used a bullet I pulled off by inertia bullet puller. So far, I suspect the Lee Factory Crimp Die I used to use to be the scapegoat - recalibrating the bullet to less than .357 diameter. I will go and try the other bullets with a dummy cartridge and the factory crimp die, then pass through the chambers again. See what will happen.

regards
Ulrich
__________________
Life is too short to own a bad gun
Reply With Quote
  #25
Old 05-26-2020, 02:33 PM
Nevada Ed's Avatar
Nevada Ed Nevada Ed is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Nov 2012
Location: Reno Nv
Posts: 8,510
Likes: 885
Liked 5,828 Times in 2,857 Posts
Default

Your final crimp die will only reduce the bullet at the end of the brass.............
and not the whole cylinder of the bullets shaft.

The crimp ring inside your die is not the problem.

If that bullet falls through the cylinder........
that is where the problem lies.

Maybe they will work in a 9mm load as a large 147gr bullet ? !

Good luck.
Reply With Quote
The Following User Likes This Post:
  #26
Old 05-27-2020, 07:03 AM
stansdds stansdds is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Apr 2007
Location: Virginia
Posts: 3,035
Likes: 2,762
Liked 3,418 Times in 1,687 Posts
Default

The Lee FCD can swage the bullet to an undersized diameter and that might be the problem. I have yet to have a need for such a die, I use a roll crimp die for revolver ammo, a taper crimp die for semi-auto pistol ammo.
__________________
VCDL, GOA, NRA
Reply With Quote
The Following 2 Users Like Post:
  #27
Old 05-27-2020, 01:34 PM
oddshooter oddshooter is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Aug 2014
Location: the free state of Arizona
Posts: 549
Likes: 1,041
Liked 959 Times in 332 Posts
Default

And if manufacturers delivering bullets with different, inconsistent diameters isn't bad enough, our handloading can mash them as well.

If you want that seater die not to swage down a bullet, you might try a Lyman "M" die that makes a little nest of the correct diameter for the bullet to seat in.

I am continually seeing my seating swage down my bullets that I had so carefully chosen for correct diameter. My normal expander die wasn't leaving a large enough diameter case. The M die concept can help with that.

The small bell/flare at the top of the case, is completely different. That is made to be able to sit a bullet on the case top and stop scrapping when seating.

I believe the keyholing is because the bullet starts wobbling through the cylinder exits. The diameter of the cylinder exits and the bullet must match. If exits are too small, it must swage down the bullet to enable it to pass through. If exits are too large, wobbling is continuous.

If using soft cast bullets, that diameter after leaving the exits should be .002 over the groove diameter. .001 over for jacketed and plated.

Another issue is using a strong profile crimp die that swages down the brass and bullet too much.

All of these require you to build a round and then use a puller to get the bullet out and measure it with some good digital calipers. You have to do this after each step in handloading to determine where the issue is.


Prescut

Last edited by oddshooter; 05-27-2020 at 01:48 PM.
Reply With Quote
The Following User Likes This Post:
  #28
Old 05-27-2020, 04:47 PM
Nevada Ed's Avatar
Nevada Ed Nevada Ed is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Nov 2012
Location: Reno Nv
Posts: 8,510
Likes: 885
Liked 5,828 Times in 2,857 Posts
Default

"Another issue is using a strong profile crimp die that swages down the brass and bullet too much.

All of these require you to build a round and then use a puller to get the bullet out and measure it with some good digital calipers. You have to do this after each step in handloading to determine where the issue is."............ quote

or you can just push the bullet down into the case....
open up the belling enough for the bullet to fall out, but ....
this will kill the case and it will need to be tossed out.
Reply With Quote
The Following User Likes This Post:
  #29
Old 05-27-2020, 08:32 PM
boatbum101 boatbum101 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Oct 2005
Location: Pensacola,FL
Posts: 1,474
Likes: 2,829
Liked 759 Times in 387 Posts
Default

Any bullet that will fall through cylinder is undersized for that gun . If it takes more than finger pressure or a pencil to push a bullet through a cylinder it's oversized . Under will lead , over will raise pressure somewhat but better than undersized . Will the slug you pushed through the bore pass through cylinder throats ? If so that's good , if not cylinder throats are undersized & need to be opened up . Also too small a throats will lead every time as bullet has been sized down before it hits the bore . Gas bypass flamecuts bullet base & you got big time leading . The Hornady bullets fall through they're undersize for that gun . If throats are larger than bore a bullet sized to throats with a good lube won't lead . We've all bought bullets that weren't sized as advertized . I'm hoping throats are good & all you need is correctly sized bullets .
Reply With Quote
The Following 2 Users Like Post:
  #30
Old 05-27-2020, 08:41 PM
pistolpete10 pistolpete10 is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Mar 2020
Posts: 29
Likes: 0
Liked 17 Times in 12 Posts
Default

Quote:
Originally Posted by colt_saa View Post
Pete,
If you have a set of 9MM dies on hand, try putting that expander plug into your 38 special die. This may be too small but does not alter parts

My preferred solution would be to reduce the diameter of your 38 special expander by about .001.

This should greatly improve your case tension on the bullet
I'll give that a try. I'll note that there isn't much resistance when seating the bullets.... It won't take much if I use the GI brass. They are accurate and no leading, soft lead, .357 instead of .358, may have to shoot them in the heavier guns.
Reply With Quote
The Following User Likes This Post:
  #31
Old 05-27-2020, 08:50 PM
rwsmith's Avatar
rwsmith rwsmith is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Dec 2012
Location: (outside) Charleston, SC
Posts: 27,988
Likes: 35,475
Liked 25,399 Times in 12,164 Posts
Default This is a wild shot.....

Make sure it's not the target paper that you are using. I've had some tear in little rectangles instead of holes and I thought it was keyholing.
__________________
"He was kinda funny lookin'"
Reply With Quote
The Following 2 Users Like Post:
  #32
Old 05-28-2020, 12:05 PM
Rule3's Avatar
Rule3 Rule3 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Feb 2008
Location: Florida, NRA CERT RSO
Posts: 20,777
Likes: 9,436
Liked 13,131 Times in 5,971 Posts
Default

Quote:
Originally Posted by rwsmith View Post
Make sure it's not the target paper that you are using. I've had some tear in little rectangles instead of holes and I thought it was keyholing.

Yep, or


For the OP how is your target paper hanging? Is you target paper just hanging by a clip attached to the top (like an indoor range) or is it firmly stapled or taped to a backer board of cardboard.
Target paper just swinging in the breeze will give distorted holes.
__________________
For office use only
Reply With Quote
The Following 2 Users Like Post:
  #33
Old 05-28-2020, 03:33 PM
Daimler1989 Daimler1989 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Jun 2009
Location: Germany
Posts: 249
Likes: 295
Liked 321 Times in 79 Posts
Default

Hi,

first of all let me say how thrilled I am with all those thoughts and answers where the problem might lie and how it could be solved. Just as a side note: I'm living in Germany and German internet forums are a often melting pot of narcisstic morons who not only try to insult you, but turn every thread into a short fused bursting charge for everyone who has another opinion. Here in Germany I probalby would have got the answer that I should not shoot a handgun if my hands were so shaky that the barrel would wobble when I pull the trigger. Thumbs up for you all, Gentlemen, for your advice and ideas, for your time and effort put into your answers to my posting. Thank you.

I try to explain what I found out so far, in addition to what I described earlier. I put another lead bullet with a dummy round through the Lee FC die, and as presumed earlier, it didn't fall through after having been pulled out of the case. So, the FC does not seem to swage the bullet down so far that diameter might be severely concerned. I loaded the Hornady bullets some time ago, after that (for completely different reasons) I switched to a tight roll crimp. I never had keyholing issues with any other handload, no matter which bullet I use. It's only the Hornadies.

Target paper is not the scapegoat as I use many different types and targets. And this keyholing effect is so severe, that there are bullets going completely sideways into the target at 10 meters. No matter which paper...

I have to admit that the effect is more often noticable with my 13-2 than with my 27-2 and 27-3. This might be the case because of some timing issues the gun has. BUT: Even at 25 meters accuracy of the 13-2 is such that I can hit a 12x8 " target with each of 30 rounds - as long as I do not use Hornadies.

I will try to contact the dealer where I bought the bullets and ask if he had any complaints comparable to mine. Interestingly I bought some 230 flat nose lead bullets for my .45 ACP 625-4 to load some auto rims - those bullets advertised as .451 diameter are indeed to small to sit tight in the Starline .45 AR brass even with a strong taper crimp. You can press them down by thumb. How common is shrinkage with lead bullets? Or how common might too small sizing occur by the manufacturer?

regards
Ulrich
__________________
Life is too short to own a bad gun
Reply With Quote
The Following User Likes This Post:
  #34
Old 05-28-2020, 07:18 PM
rwsmith's Avatar
rwsmith rwsmith is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Dec 2012
Location: (outside) Charleston, SC
Posts: 27,988
Likes: 35,475
Liked 25,399 Times in 12,164 Posts
Default Thanks for the detail....

Quote:
Originally Posted by Daimler1989 View Post
Hi,

first of all let me say how thrilled I am with all those thoughts and answers where the problem might lie and how it could be solved. Just as a side note: I'm living in Germany and German internet forums are a often melting pot of narcisstic morons who not only try to insult you, but turn every thread into a short fused bursting charge for everyone who has another opinion. Here in Germany I probalby would have got the answer that I should not shoot a handgun if my hands were so shaky that the barrel would wobble when I pull the trigger. Thumbs up for you all, Gentlemen, for your advice and ideas, for your time and effort put into your answers to my posting. Thank you.

I try to explain what I found out so far, in addition to what I described earlier. I put another lead bullet with a dummy round through the Lee FC die, and as presumed earlier, it didn't fall through after having been pulled out of the case. So, the FC does not seem to swage the bullet down so far that diameter might be severely concerned. I loaded the Hornady bullets some time ago, after that (for completely different reasons) I switched to a tight roll crimp. I never had keyholing issues with any other handload, no matter which bullet I use. It's only the Hornadies.

Target paper is not the scapegoat as I use many different types and targets. And this keyholing effect is so severe, that there are bullets going completely sideways into the target at 10 meters. No matter which paper...

I have to admit that the effect is more often noticable with my 13-2 than with my 27-2 and 27-3. This might be the case because of some timing issues the gun has. BUT: Even at 25 meters accuracy of the 13-2 is such that I can hit a 12x8 " target with each of 30 rounds - as long as I do not use Hornadies.

I will try to contact the dealer where I bought the bullets and ask if he had any complaints comparable to mine. Interestingly I bought some 230 flat nose lead bullets for my .45 ACP 625-4 to load some auto rims - those bullets advertised as .451 diameter are indeed to small to sit tight in the Starline .45 AR brass even with a strong taper crimp. You can press them down by thumb. How common is shrinkage with lead bullets? Or how common might too small sizing occur by the manufacturer?

regards
Ulrich
...obviously you are conscientious about what you are doing and serious forum member appreciate that. And you are right, this is one of the best forums on the web thanks in part to really knowledgeable members and the moderator and staff which keep a very tight lid on content.

One thing that clued me into the 'fake' keyholing with the targets was that each hole tore vertically rather than random directions like actual keyholing would do.
__________________
"He was kinda funny lookin'"

Last edited by rwsmith; 05-29-2020 at 06:21 PM.
Reply With Quote
  #35
Old 05-29-2020, 08:19 AM
stansdds stansdds is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Apr 2007
Location: Virginia
Posts: 3,035
Likes: 2,762
Liked 3,418 Times in 1,687 Posts
Default

Daimler1989, I strongly suggest that you put a fresh battery in your caliper and measure the diameter of the Hornady bullets.
__________________
VCDL, GOA, NRA
Reply With Quote
  #36
Old 05-29-2020, 08:41 PM
pistolpete10 pistolpete10 is online now
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Mar 2020
Posts: 29
Likes: 0
Liked 17 Times in 12 Posts
Default

Quote:
Originally Posted by stansdds View Post
Daimler1989, I strongly suggest that you put a fresh battery in your caliper and measure the diameter of the Hornady bullets.
A micrometer is better than calipers for measuring bullets, I wouldn't trust the electronic ones anyway.
Reply With Quote
The Following User Likes This Post:
  #37
Old 05-30-2020, 09:26 AM
stansdds stansdds is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Apr 2007
Location: Virginia
Posts: 3,035
Likes: 2,762
Liked 3,418 Times in 1,687 Posts
Default

Quote:
Originally Posted by pistolpete10 View Post
A micrometer is better than calipers for measuring bullets, I wouldn't trust the electronic ones anyway.
I'm not a fan of battery powered calipers or scales. Just like the issue the OP is currently experiencing, the batteries eventually fail and the instrument becomes an expensive paperweight. I'm older, I like the reliability of mechanical instruments.
__________________
VCDL, GOA, NRA
Reply With Quote
The Following 2 Users Like Post:
  #38
Old 05-30-2020, 12:29 PM
boatbum101 boatbum101 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Oct 2005
Location: Pensacola,FL
Posts: 1,474
Likes: 2,829
Liked 759 Times in 387 Posts
Default

Just looked thru Horn 6th edition . With that bullet they are showing a max load of 4.5grs VVN-340 . 800fps , Hornady brass , Winchester Small Pistol Primer , oal 1.455" , shot from a S&W 15 4". You already know your bullets are undersized , plus you're pushing a soft swaged bullet too fast . Classic recipe for leading / inaccuracy . Whats happening is pressure of your load is exceeding the yield strength of the bullets alloy . Even if bullets were sized correctly this is still not the way to good results . Two choices assuming you have correctly sized bullets : Reduce powder charge or go with a harder alloy . 38 special you don't need harder than BHN 8 to 10 . Two rules of thumb if you shoot cast bullets : must be of correct size for the gun & alloy must match load pressure . You'll have much better luck if you follow these .
Reply With Quote
  #39
Old 06-02-2020, 01:35 PM
Nevada Ed's Avatar
Nevada Ed Nevada Ed is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Nov 2012
Location: Reno Nv
Posts: 8,510
Likes: 885
Liked 5,828 Times in 2,857 Posts
Default

It might just be the powder that you are using?

You stated 833fos with the 158g bullet with a 4"...................

Unique powder in my J frame snub nose will get 861fps with a Speer bullet.

Better luck with the next box of bullets.
Reply With Quote
  #40
Old 06-02-2020, 02:25 PM
boatbum101 boatbum101 is offline
Member
.38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing .38 Special LSWC keyholing
Join Date: Oct 2005
Location: Pensacola,FL
Posts: 1,474
Likes: 2,829
Liked 759 Times in 387 Posts
Default

Recent post on Bullseye-L forum , guy had some Hornady 158 RN swaged & was having problems . Turns out they are also undersized . I've only bought their HBWC . They shot OK but were pricey . Remeber being able to buy a case ( 2,000 ) of the excellent Remington or Winchester 148 HBWC for what I'd pay for 900 Hornady . When the Winchesters became unavailable I got the Rem as they both shot well . 3rd place went to the old Star's that came in plastic tubes .
Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Crimping .38 special with LSWC Michael Rothberg Reloading 24 03-24-2016 11:02 AM
38 Special LSWC bananaman Reloading 23 09-18-2014 10:40 AM
38 Special 158 LSWC vs 158 LRNFP chipking Reloading 10 10-07-2013 11:53 AM
38 special lswc problem davebell18 Reloading 34 02-17-2012 04:35 PM
Any Fav loads 38 special 158 LSWC geddylee10002000 Reloading 27 04-13-2010 06:51 PM

Powered by vBadvanced CMPS v3.2.3
smith-wessonforum.com tested by Norton Internet Security smith-wessonforum.com tested by McAfee Internet Security

All times are GMT -4. The time now is 11:05 PM.


Search Engine Optimisation provided by DragonByte SEO v2.0.42 (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
Smith-WessonForum.com is not affiliated with Smith & Wesson Holding Corporation (NASDAQ Global Select: SWHC)
