S&W Revolvers: 1980 to the Present All NON-PINNED Barrels, the L-Frames, and the New Era Revolvers


Reply

Thread Tools Display Modes
  #1
Old 10-16-2020, 06:48 AM
BigBill's Avatar
BigBill BigBill is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Jan 2011
Location: north america
Posts: 12,556
Likes: 1,715
Liked 11,556 Times in 4,835 Posts
Default Two piece barrels?

What revolvers have two piece barrels or barrel liners?
Reply With Quote
  #2
Old 10-16-2020, 07:54 AM
stansdds stansdds is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Apr 2007
Location: Virginia
Posts: 3,911
Likes: 4,398
Liked 4,497 Times in 2,218 Posts
Default

I know the current production Model 19 and Model 66 Classic and Model 69 have two piece barrels.
__________________
VCDL, GOA, NRA
Reply With Quote
  #3
Old 10-16-2020, 08:31 AM
cmansguns's Avatar
cmansguns cmansguns is offline
US Veteran
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Mar 2016
Location: Hanover, Virginia
Posts: 1,134
Likes: 1,940
Liked 3,006 Times in 812 Posts
Default

My Model 66-6 which came with blue plastic case, docs, & fired case dated May 28, 2002 has the 4" Heavy Barrel, product code 162706. Uncle Mikes grips were factory standard, at least on mine.

It is my understanding that this series was the last made with one piece barrels. The Model 66's made after mid 2002 came with 2 piece barrels until end of production in 2005.

When I got mine, there was an identical gun right next to this one, however didn't look as pristine and didn't have any case or docs, and it was with a 2 piece barrel, which just didn't tickle my fancy. I was also trying to reconcile my brain to accepting the infamous Hillary Hole, with the 2 keys, and the gigantic factory sealed Master padlock....talk about retention level 95!

Anyway.....the gun is terrific. Eats anything (brand and weight wise) in 38 Spl or 357 Magnum that we feed it. I say we because when my daughter (LEO) is home we like to compete with our Glock 21, Gen 4 in 45acp (her State issue, mine bought to keep up with her), AND the Model 66. Her state has numerous Mod 66's left over in the armory that the troops love to shoot and play with after qual sessions and she is really competent so I get beat usually with both guns....but hey...fun range time with family is plain fun so I don't care who wins, cause we both do!

PS: Hundreds, if not thousands now, rounds downrange and never a problem with the Hillary Hole, so if any of you are in need of 2 untouched keys, plus a massive Gorilla proof Master padlock in sealed sleeve...just let me know.
Attached Thumbnails
Two piece barrels?-model-66-6-jpg   Two piece barrels?-model-66-6-b-jpg
__________________
Charlie B
SWCA#3083, SWHF#570
Reply With Quote
  #4
Old 10-16-2020, 09:03 AM
ACORN's Avatar
ACORN ACORN is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Jan 2004
Location: North Huntingdon Pa.
Posts: 2,543
Likes: 3,492
Liked 4,958 Times in 1,579 Posts
Default

I have a 3” 64-8 that has the 2 piece barrel
__________________
Who are those guys?
Reply With Quote
  #5
Old 10-16-2020, 09:25 AM
colt_saa's Avatar
colt_saa colt_saa is online now
SWCA Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Feb 2005
Location: Cocoa Beach, Florida
Posts: 8,758
Likes: 1,603
Liked 15,492 Times in 4,357 Posts
Default

You guys left out LOTS of the Smith & Wessons with multi piece barrels.

2 piece barrel assemblies
19
64
65
66
67
69
242Ti
296Ti
310NG
315NGG
317
325NG
325PD
325SC
327NG
327PD
329NG
329PD
329Hunter
331TI
337
340PD
M&P 340
342
351
360
386PD
386Hunter
396
430
431
437
460 (most variations)
500 (most variations)
520
619
620

3 piece barrel assemblies
66
327 2"
327 TRR8
327 JM
327 M&P R8
500 John Ross

I am sure I missed a few
__________________
"Acta non verba"
Reply With Quote
  #6
Old 10-16-2020, 09:32 AM
Nick B Nick B is offline
US Veteran
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Jun 2005
Location: S.W. Fl.
Posts: 1,285
Likes: 289
Liked 679 Times in 274 Posts
Default

Quote:
Originally Posted by colt_saa View Post
You guys left out LOTS of the Smith & Wessons with multi piece barrels.

2 piece barrel assemblies
19
64
65
66
67
69
242Ti
296Ti
310NG
315NGG
317
325NG
325PD
325SC
327NG
327PD
329NG
329PD
329Hunter
331TI
337
340PD
M&P 340
342
351
360
386PD
386Hunter
396
430
431
437
460 (most variations)
500 (most variations)
520
619
620

3 piece barrel assemblies
66
327 2"
327 TRR8
327 JM
327 M&P R8
500 John Ross

I am sure I missed a few
Now that’s what I call an informative post .
Great job .
Reply With Quote
  #7
Old 10-16-2020, 10:59 AM
Lou_the_welder's Avatar
Lou_the_welder Lou_the_welder is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Aug 2015
Location: Los Angeles,California
Posts: 1,488
Likes: 2,659
Liked 2,525 Times in 882 Posts
Default

Quote:
Originally Posted by colt_saa View Post
You guys left out LOTS of the Smith & Wessons with multi piece barrels.



2 piece barrel assemblies

19

64

65

66

67

69

242Ti

296Ti

310NG

315NGG

317

325NG

325PD

325SC

327NG

327PD

329NG

329PD

329Hunter

331TI

337

340PD

M&P 340

342

351

360

386PD

386Hunter

396

430

431

437

460 (most variations)

500 (most variations)

520

619

620



3 piece barrel assemblies

66

327 2"

327 TRR8

327 JM

327 M&P R8

500 John Ross



I am sure I missed a few

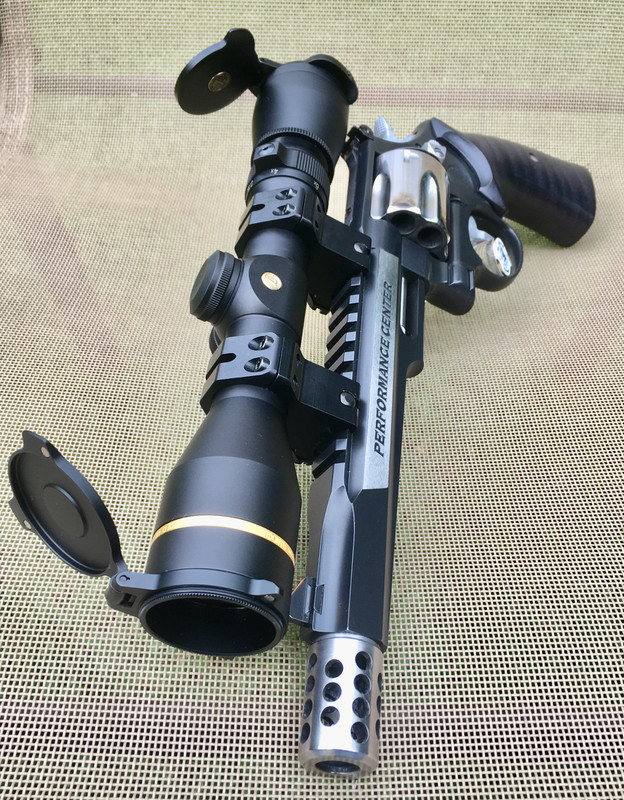

I think the 629 PC Hunter also has a 3 piece. The one with the Comp. ..
Reply With Quote
The Following User Likes This Post:
  #8
Old 10-16-2020, 02:21 PM
stansdds stansdds is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Apr 2007
Location: Virginia
Posts: 3,911
Likes: 4,398
Liked 4,497 Times in 2,218 Posts
Default

For someone whose forum name is "Colt", you sure seem to know a whole lot about S&W's! Great list.
__________________
VCDL, GOA, NRA
Reply With Quote
The Following 2 Users Like Post:
  #9
Old 10-16-2020, 04:35 PM
1sailor 1sailor is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Dec 2011
Posts: 1,380
Likes: 22
Liked 760 Times in 339 Posts
Default

About 7 or 8 years ago I bought a 66-7 with a 2.5" two piece barrel. I was a little leery because it was something I'd never encountered before. Still the price was right and the gun looked almost new (and has a pinned front sight which is important to me) so I bought it. The bottom line is that it has turned out to be one of the most accurate and fastest on target pistols I've ever owned. At least out to 20 meters. It would certainly be one of the last of my pistols I would ever sell.
Reply With Quote
The Following User Likes This Post:
  #10
Old 10-17-2020, 03:24 AM
BLUEDOT37's Avatar
BLUEDOT37 BLUEDOT37 is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Dec 2012
Location: N.E. OKLA.
Posts: 5,226
Likes: 4,558
Liked 6,646 Times in 2,579 Posts
Default

As colt_saa's list shows, all Sc/Al alloy frame models have (2) or (3) piece barrels, AFAIK.

If we're expanding the list to include (3) piece barrel revolvers you can add the PC 325TR & the PC 460XVR snubby to it.

.



.
.



.
__________________
We gotta hold onto what we got

Last edited by BLUEDOT37; 10-21-2020 at 01:28 AM. Reason: .
Reply With Quote
The Following 3 Users Like Post:
  #11
Old 10-17-2020, 06:05 AM
StrawHat StrawHat is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Jan 2007
Location: Northeast Ohio
Posts: 1,661
Likes: 2,466
Liked 3,161 Times in 1,023 Posts
Default

I understand the two piece barrel but what is a three piece barrel?

Thank you.

Kevin
__________________
Unshared knowledge is wasted.
Reply With Quote
  #12
Old 10-17-2020, 11:40 AM
stansdds stansdds is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Apr 2007
Location: Virginia
Posts: 3,911
Likes: 4,398
Liked 4,497 Times in 2,218 Posts
Default

Quote:
Originally Posted by StrawHat View Post
I understand the two piece barrel but what is a three piece barrel?

Thank you.

Kevin
I guess it is a formal barrel, with pants, jacket, and a vest.
__________________
VCDL, GOA, NRA
Reply With Quote
The Following 5 Users Like Post:
  #13
Old 10-17-2020, 12:26 PM
colt_saa's Avatar
colt_saa colt_saa is online now
SWCA Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Feb 2005
Location: Cocoa Beach, Florida
Posts: 8,758
Likes: 1,603
Liked 15,492 Times in 4,357 Posts
Default

Quote:
Originally Posted by StrawHat View Post
I understand the two piece barrel but what is a three piece barrel?

Thank you.

Kevin
A two piece barrel assemble consists of a barrel shroud and a threaded barrel that has a flange on the muzzle end.

The flange is tightened against the shroud which tensions the barrel inside the shroud. This is very similar to the method used on the Ruger Redhawk revovlers.



A three piece barrel assembly consists of a barrel shroud, a barrel threaded on both ends and a nut/comp/cap for the muzzle end



The barrel nut/comp/cap is tightened against the barrel shroud which tensions the barrel inside the shroud. This three piece configuration is closer to the original decades old Dan Wesson design
__________________
"Acta non verba"
Reply With Quote
The Following 3 Users Like Post:
  #14
Old 10-17-2020, 12:27 PM
colt_saa's Avatar
colt_saa colt_saa is online now
SWCA Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Feb 2005
Location: Cocoa Beach, Florida
Posts: 8,758
Likes: 1,603
Liked 15,492 Times in 4,357 Posts
Default

Quote:
Originally Posted by stansdds View Post
I guess it is a formal barrel, with pants, jacket, and a vest.
No vest . . . . Cummerbund
__________________
"Acta non verba"
Reply With Quote
The Following User Likes This Post:
  #15
Old 10-17-2020, 01:16 PM
Lou_the_welder's Avatar
Lou_the_welder Lou_the_welder is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Aug 2015
Location: Los Angeles,California
Posts: 1,488
Likes: 2,659
Liked 2,525 Times in 882 Posts
Default

Just wanted to add a picture of a 3 piece taken apart. But Colt saa beat me to it, while I was drive thru-ing my coffee!
Barrel. Shroud. Locking nut. 3 piece.
Reply With Quote
The Following 4 Users Like Post:
  #16
Old 10-17-2020, 02:31 PM
Pine_Worker's Avatar
Pine_Worker Pine_Worker is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Oct 2007
Location: Central Texas
Posts: 871
Likes: 1,198
Liked 941 Times in 395 Posts
Default

Quote:
Originally Posted by stansdds View Post
I guess it is a formal barrel, with pants, jacket, and a vest.
Funny! LOL
__________________
Pine_Worker
NRA Life Member
Reply With Quote
  #17
Old 10-17-2020, 07:39 PM
StrawHat StrawHat is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Jan 2007
Location: Northeast Ohio
Posts: 1,661
Likes: 2,466
Liked 3,161 Times in 1,023 Posts
Default

Thank you for all the answers, wiseacres and serious. The DW style was supposed to have consistent, repeatable accuracy. Does the S&W live up to that promise?

Kevin
__________________
Unshared knowledge is wasted.
Reply With Quote
  #18
Old 10-17-2020, 10:20 PM
colt_saa's Avatar
colt_saa colt_saa is online now
SWCA Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Feb 2005
Location: Cocoa Beach, Florida
Posts: 8,758
Likes: 1,603
Liked 15,492 Times in 4,357 Posts
Default

Quote:
Originally Posted by StrawHat View Post
Thank you for all the answers, wiseacres and serious. The DW style was supposed to have consistent, repeatable accuracy. Does the S&W live up to that promise?

Kevin
Yes, the Smith & Wesson implementation of the tensioned multi piece barrel assemblies has indeed created revolvers rivaling the Legendary Dan Wesson accuracy

The design works as well today as it did 40+ years ago

Both of my 5" 327s are astonishingly more accurate than other 357 Magnum N-frames. My 327 TRR8 has become one of my favorites

Smith & Wessons 460s and 500s are just amazing

Though I do still shoot my Dan Wesson SuperMags

__________________
"Acta non verba"

Last edited by colt_saa; 10-18-2020 at 04:19 AM.
Reply With Quote
The Following 5 Users Like Post:
  #19
Old 10-18-2020, 01:25 PM
Lou_the_welder's Avatar
Lou_the_welder Lou_the_welder is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Aug 2015
Location: Los Angeles,California
Posts: 1,488
Likes: 2,659
Liked 2,525 Times in 882 Posts
Default

Quote:
Originally Posted by StrawHat View Post
Thank you for all the answers, wiseacres and serious. The DW style was supposed to have consistent, repeatable accuracy. Does the S&W live up to that promise?

Kevin
Given the same barrel length on a 327 and on a 627, 5" and shooting them back to back for years, I can say with certainty, that the 327's multi piece barrel was always more accurate than the 627.

Hands down the 327 is my favourite, being the most accurate, easier to hold and being able to handle magnums better than it's all steel counterpart.

Reply With Quote
The Following 3 Users Like Post:
  #20
Old 10-18-2020, 06:17 PM
75Vette's Avatar
75Vette 75Vette is online now
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Jul 2013
Location: South of Atl
Posts: 3,571
Likes: 31,601
Liked 11,503 Times in 2,635 Posts
Default

Quote:
Originally Posted by Lou_the_welder View Post
I think the 629 PC Hunter also has a 3 piece. The one with the Comp. ..
Correct Lou. I think you're talking about the 629-7 Magnum Hunters. The comp is also a 'nut'.



__________________
I Injured The Fur Trapper
Reply With Quote
The Following 2 Users Like Post:
  #21
Old 10-18-2020, 06:31 PM
Lou_the_welder's Avatar
Lou_the_welder Lou_the_welder is offline
Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Aug 2015
Location: Los Angeles,California
Posts: 1,488
Likes: 2,659
Liked 2,525 Times in 882 Posts
Default

Quote:
Originally Posted by 75Vette View Post
Correct Lou. I think you're talking about the 629-7 Magnum Hunters. The comp is also a 'nut'.







I remembered when you told me about them. If the comp is the locking nut, that makes em 3-piece barrels. Too.

Nice!Two piece barrels?

Last edited by Lou_the_welder; 10-18-2020 at 06:42 PM.
Reply With Quote
The Following User Likes This Post:
  #22
Old 10-18-2020, 08:14 PM
colt_saa's Avatar
colt_saa colt_saa is online now
SWCA Member
Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels? Two piece barrels?
Join Date: Feb 2005
Location: Cocoa Beach, Florida
Posts: 8,758
Likes: 1,603
Liked 15,492 Times in 4,357 Posts
Default

Quote:
Originally Posted by 75Vette View Post
Correct Lou. I think you're talking about the 629-7 Magnum Hunters. The comp is also a 'nut'.



I had that mixed up in my memory as a 329 Hunter.

I should have remembered, I like that two tone finish it has
__________________
"Acta non verba"
Reply With Quote
The Following User Likes This Post:
Reply

Thread Tools
Display Modes

Posting Rules
Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
2 Piece barrels 7shooter S&W Revolvers: 1980 to the Present 13 02-04-2010 08:08 PM
2 piece barrels... dewalt-2 S&W Revolvers: 1980 to the Present 4 10-21-2009 08:17 PM
2 piece barrels jrszy S&W Revolvers: 1980 to the Present 10 10-19-2009 08:44 PM
Two Piece Barrels yaktamer S&W Revolvers: 1980 to the Present 1 09-13-2009 03:11 PM
End of 2 piece barrels on 64 and 67's Sgt 127 S&W Revolvers: 1980 to the Present 18 05-31-2009 07:48 PM

Powered by vBadvanced CMPS v3.2.3
smith-wessonforum.com tested by Norton Internet Security smith-wessonforum.com tested by McAfee Internet Security

All times are GMT -4. The time now is 09:38 AM.


Search Engine Optimisation provided by DragonByte SEO v2.0.42 (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
Smith-WessonForum.com is not affiliated with Smith & Wesson Holding Corporation (NASDAQ Global Select: SWHC)
