Hi guys,

Our friend HeyMatt wanted to add a scallop cut to his M6946. Since he wanted to keep the pistol original, he found a spare slide and parts online. So, in this project, like many others, no pistol was modified, just a spare slide.



there were a lot of dings and scratches on the business end of the slide...


so, I did some work on it...I left it there, because I didn't want to remove too much material...

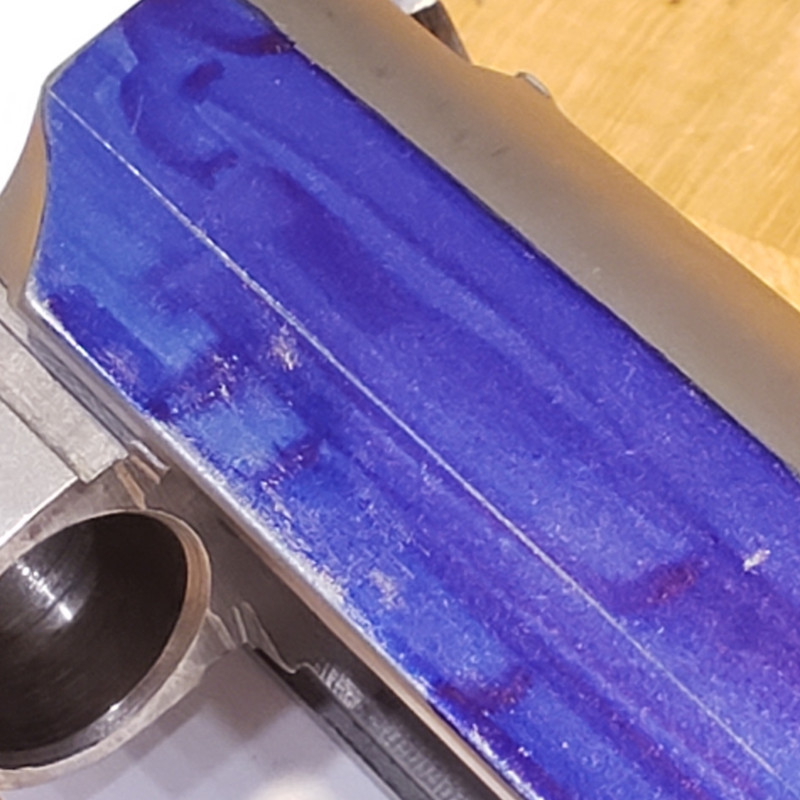

then I took some measurements....


drew some reference lines...

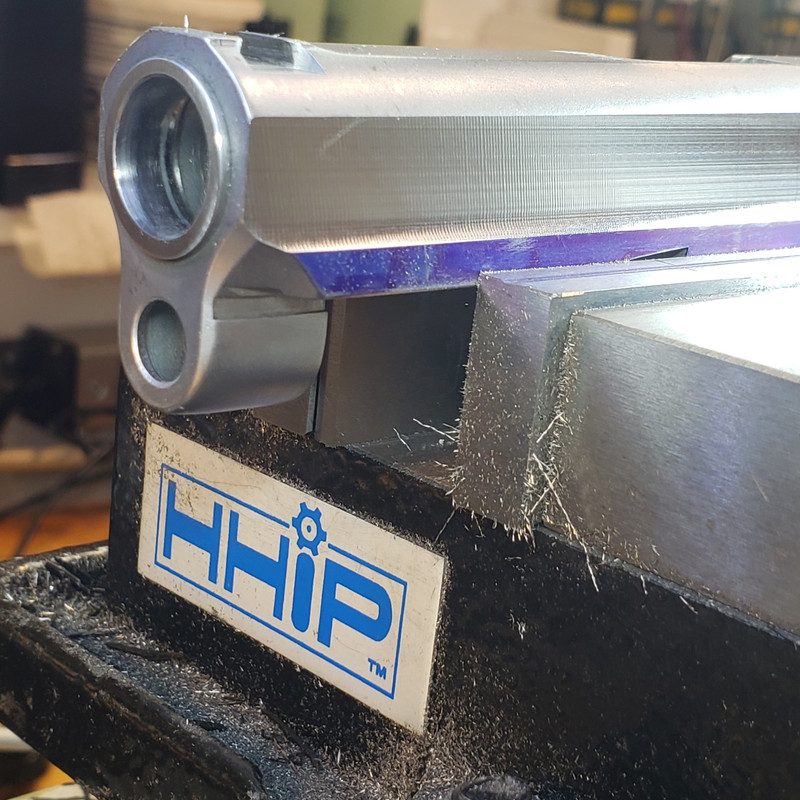

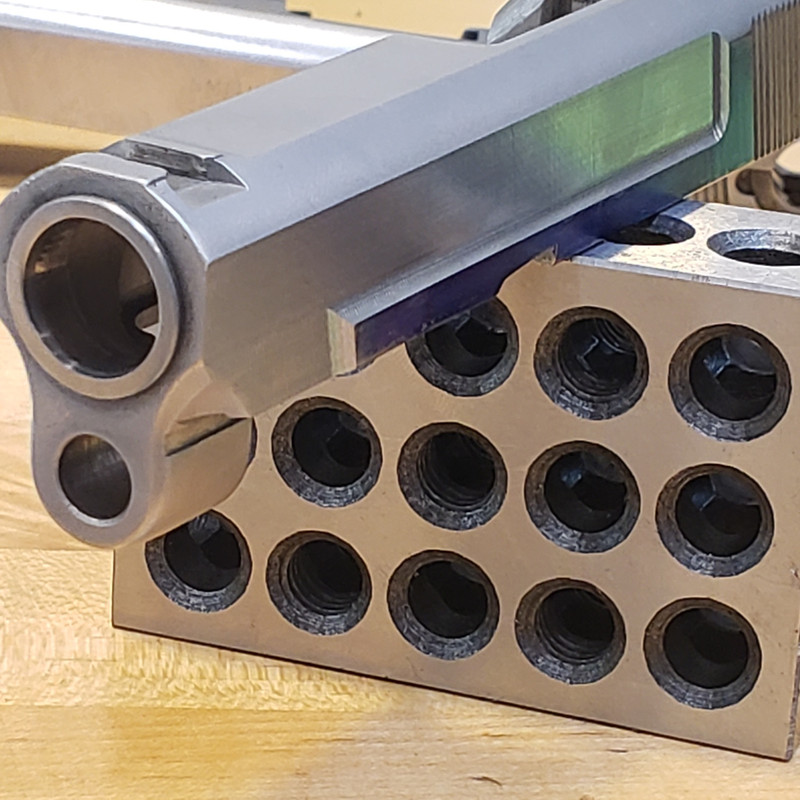

and clamped it in the milling machine.


started the process...

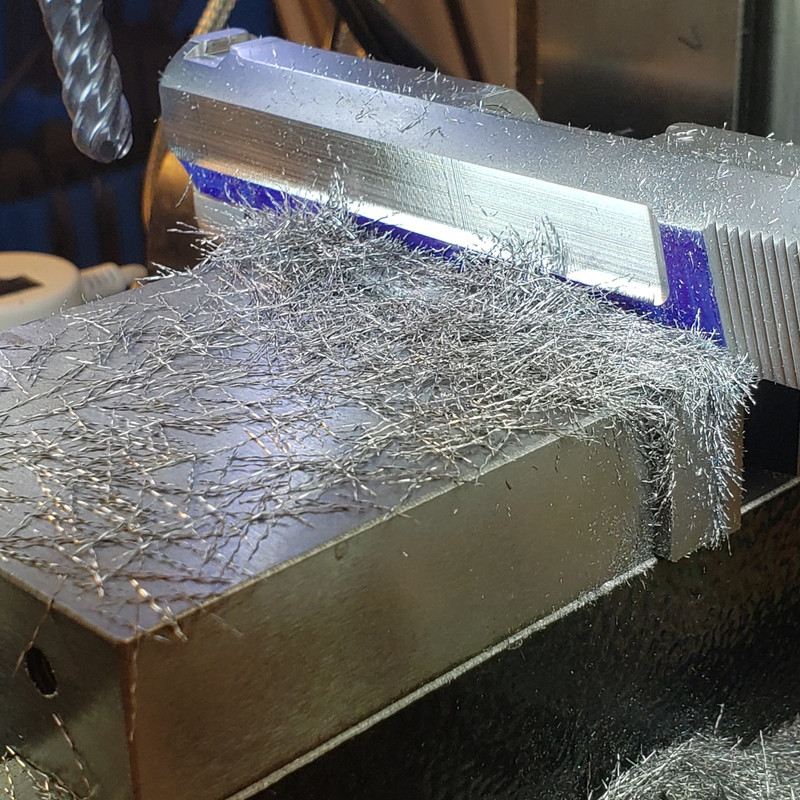

passes are shallow, 2 thousands of an inch each one...small machine...feeding speed is slow...to minimize machining marks...

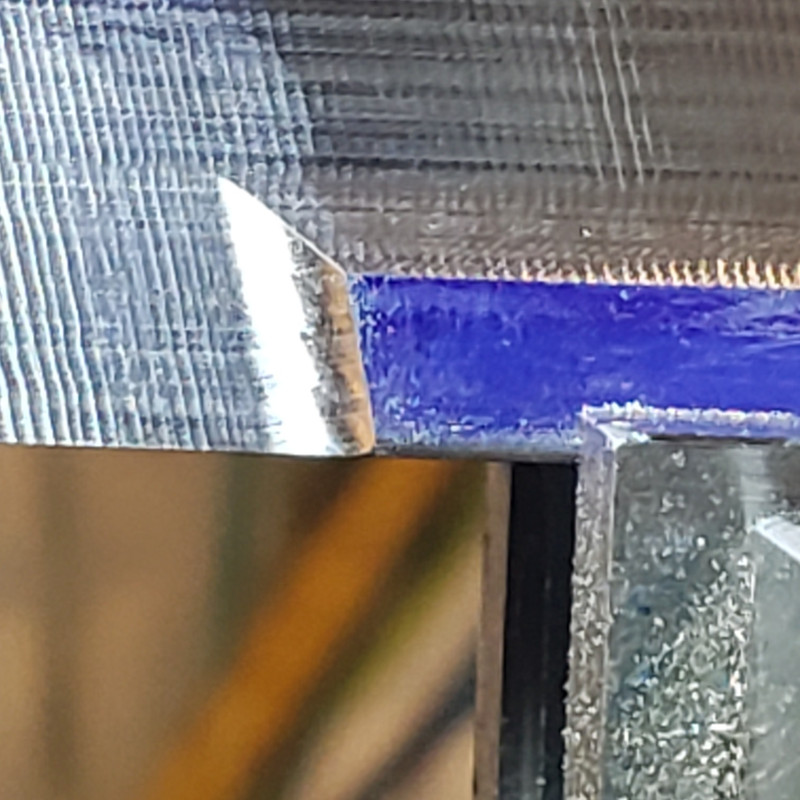

progress...


details...

and then...

...machining part was over...

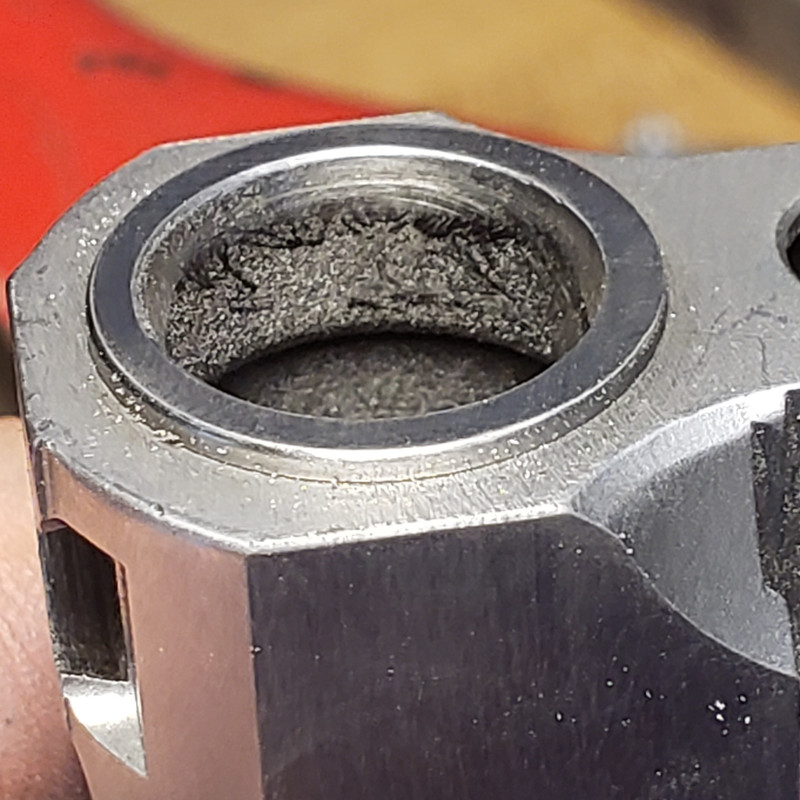

cleaned the marks...

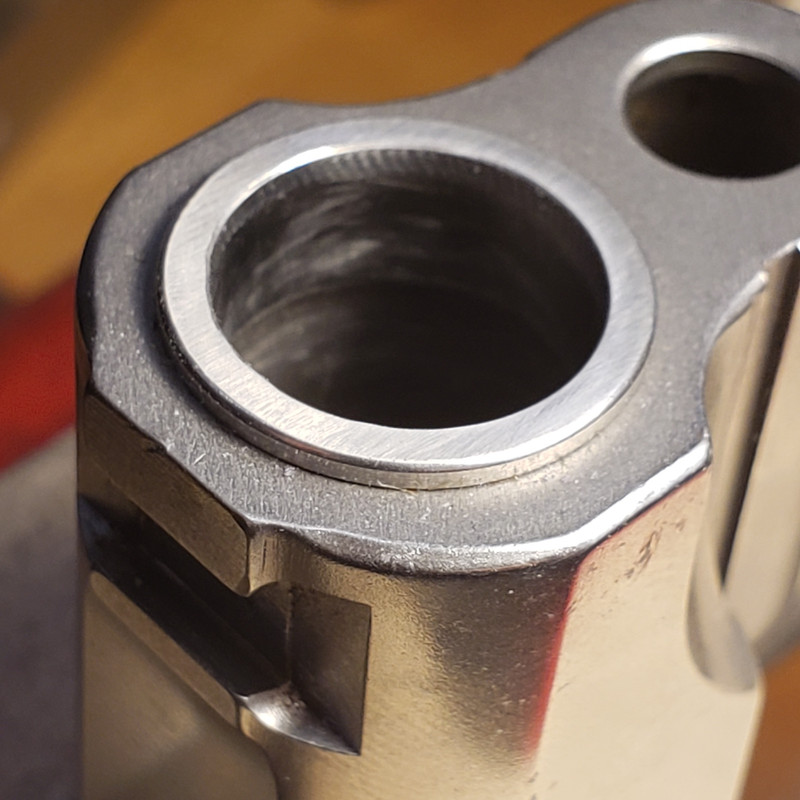

did some beveling to remove the sharp edges and finished polishing the barrel bushing...

more to come...

Last edited by guzzitaco; 11-24-2021 at 06:35 PM.
Reply With Quote
  #2
Old 11-24-2021, 07:31 PM
4T5GUY's Avatar
4T5GUY 4T5GUY is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Apr 2015
Location: Oregon Coast
Posts: 1,266
Likes: 2,646
Liked 3,414 Times in 1,019 Posts
Default

I can hardly wait to see it complete on the lower.

Another perfectly wonderful job and a piece of art. I’m glad you mentioned the fact that the originality can be returned. In the end the original example won’t be “compromised”. No one should be offended.

Jim
Reply With Quote
The Following 3 Users Like Post:
  #3
Old 11-24-2021, 08:42 PM
JohnHL JohnHL is offline
SWCA Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Aug 2013
Location: Foothills of the Ozarks
Posts: 2,951
Likes: 7,949
Liked 4,280 Times in 1,714 Posts
Default

Nice work as always, Guzzi!

You've done a number of these now.

Can you share any techniques you've learned and applied to the process to make it faster/easier/smoother/better?

John?
Reply With Quote
The Following 2 Users Like Post:
  #4
Old 11-24-2021, 09:29 PM
guzzitaco's Avatar
guzzitaco guzzitaco is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Sep 2018
Location: Pompano Beach, FL
Posts: 440
Likes: 849
Liked 1,507 Times in 287 Posts
Default

Quote:
Originally Posted by JohnHL View Post
Nice work as always, Guzzi!

You've done a number of these now.

Can you share any techniques you've learned and applied to the process to make it faster/easier/smoother/better?

John?
Thank you John...

some things I have learned...some of them the hard way...

1) S&W slides are hard...I mean really hard. Stainless ones seem a bit softer than carbon (blue) ones...I have used different cutters...the best so far is carbide with an Atin coating...however, these are expensive...no real bargains here...the more expensive the cutter the better it is...Like what Jeff Cooper used to say "normally you get what you pay for..."

2) Feeding speed (the rate that I crank) the handle needs to be slow but constant...I am looking for a power feeder now that can have a very low speed...need to stay focus on what I'm doing...if I stop paying attention and start listing to much to the music...kaputt...mistake happens...

3) Shallow cuts give better results...I can do cases of 3 or 4 thou, but the machine vibrates too much...since it is too light (milling machines weights only 160 lbs). So, I need to take shallow cuts and a slow speed...this takes time...

4) it was a steep leaning curve in many small things...like how to "attached" the end mill to the machine properly...how tight the vise should go...and things like that...

5) light is your friend...I invested in lighting...diffrent lights that can attach to the milling machine...the shadows are a problem and I work at night...when I get home after my other job...


BMCM has helped a LOT...a TON...he has a lot of experience and is very patient and generous.

...but, I like doing this a lot...I mean, the feeling of "shaping" or "building" something is great...I know all of this is really basic to some experienced guys, but remember I was using hand files year ago, so to me the journey has been great...

hope this helps...
Reply With Quote
The Following 8 Users Like Post:
  #5
Old 11-24-2021, 10:11 PM
Heymatt Heymatt is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Jan 2019
Location: SE Fla
Posts: 417
Likes: 457
Liked 673 Times in 251 Posts
Default

The original 6946 is an early square trigger guard with laser etching on the outside of the slide.
The one that Guzzi is working on, is a later slide with the laser etching on the inside of the slide.
Not that this model is rare or hard to find. But I wanted the option to return the pistol to as built condition if needed. Hence the second slide
Reply With Quote
The Following 5 Users Like Post:
  #6
Old 11-25-2021, 12:07 AM
JohnHL JohnHL is offline
SWCA Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Aug 2013
Location: Foothills of the Ozarks
Posts: 2,951
Likes: 7,949
Liked 4,280 Times in 1,714 Posts
Default

Thanks a lot for the details behind the pictures, Guzzi!

That's the tech stuff that I crave!

Are you ready to start looking for a used Bridgeport?

John
Reply With Quote
The Following User Likes This Post:
  #7
Old 11-25-2021, 09:58 AM
stansdds stansdds is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Apr 2007
Location: Virginia
Posts: 6,234
Likes: 10,826
Liked 7,682 Times in 3,688 Posts
Default

Very nice and wise to use a spare slide so that the pistol's originality can be retained.
__________________
VCDL, GOA, NRA
Reply With Quote
The Following User Likes This Post:
  #8
Old 11-25-2021, 06:25 PM
Jaymo Jaymo is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Jan 2013
Posts: 2,670
Likes: 3,513
Liked 1,565 Times in 905 Posts
Default

Nice work (again) Guzzi. You could make a Glock look good.
__________________
What would Jim Cirillo do?
Reply With Quote
The Following 2 Users Like Post:
  #9
Old 11-25-2021, 06:32 PM
GaryS's Avatar
GaryS GaryS is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Nov 2009
Location: Wolkenkuckucksheim
Posts: 10,277
Likes: 8,127
Liked 15,259 Times in 5,912 Posts
Default

Let's not get carried away there!

Quote:
Originally Posted by Jaymo View Post
Nice work (again) Guzzi. You could make a Glock look good.
__________________
Can open, worms everywhere.
Reply With Quote
The Following 6 Users Like Post:
  #10
Old 11-25-2021, 06:44 PM
JohnHL JohnHL is offline
SWCA Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Aug 2013
Location: Foothills of the Ozarks
Posts: 2,951
Likes: 7,949
Liked 4,280 Times in 1,714 Posts
Default

Quote:
Originally Posted by Jaymo View Post
Nice work (again) Guzzi. You could make a Glock look good.
Quote:
Originally Posted by GaryS View Post
Let's not get carried away there!
I don't know, Gary...

Imagine a Glock with a Guzzi PC Scallop, and rounding off those square corners.

It would do a lot for the looks!

John
Reply With Quote
The Following 4 Users Like Post:
  #11
Old 11-25-2021, 09:28 PM
GaryS's Avatar
GaryS GaryS is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Nov 2009
Location: Wolkenkuckucksheim
Posts: 10,277
Likes: 8,127
Liked 15,259 Times in 5,912 Posts
Default

Silk purse, sow's ear.

Quote:
Originally Posted by JohnHL View Post
I don't know, Gary...

Imagine a Glock with a Guzzi PC Scallop, and rounding off those square corners.

It would do a lot for the looks!

John
__________________
Can open, worms everywhere.
Reply With Quote
The Following 3 Users Like Post:
  #12
Old 11-25-2021, 10:04 PM
cmj8591's Avatar
cmj8591 cmj8591 is offline
Member
M6946 Project
Join Date: Jul 2007
Location: Massachusetts, USA
Posts: 1,604
Likes: 615
Liked 2,186 Times in 847 Posts
Default

With these modifications do you find a change in the way the gun functions? It seems that a lighter slide would require a change to the recoil spring and would slam the frame harder. Have you had any problems? It does look nice.
Reply With Quote
The Following User Likes This Post:
  #13
Old 11-25-2021, 11:28 PM
guzzitaco's Avatar
guzzitaco guzzitaco is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Sep 2018
Location: Pompano Beach, FL
Posts: 440
Likes: 849
Liked 1,507 Times in 287 Posts
Default

Quote:
Originally Posted by Jaymo View Post
Nice work (again) Guzzi. You could make a Glock look good.
This made me laugh..

Quote:
Originally Posted by GaryS View Post
Let's not get carried away there!
this too...

Quote:
Originally Posted by JohnHL View Post
I don't know, Gary...

Imagine a Glock with a Guzzi PC Scallop, and rounding off those square corners.

It would do a lot for the looks!

John
Never thought about it...problem is too many people working on Glocks...few people making 3rd gens look different...

...but never say never...

Thank you guys ...
Reply With Quote
The Following 2 Users Like Post:
  #14
Old 11-25-2021, 11:41 PM
guzzitaco's Avatar
guzzitaco guzzitaco is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Sep 2018
Location: Pompano Beach, FL
Posts: 440
Likes: 849
Liked 1,507 Times in 287 Posts
Default

Quote:
Originally Posted by cmj8591 View Post
With these modifications do you find a change in the way the gun functions? It seems that a lighter slide would require a change to the recoil spring and would slam the frame harder. Have you had any problems? It does look nice.
Hi cmj,

good observation. This subject has been discussed in other threads were I have presented the same mods on other slides...

The weight of the striped slide before the cut was 9.7 Oz.

The weight of the stripped slide after the cuts is 9.3 Oz.

The total wight reduction is 0.4 Oz. or 4.12%.

Cuts are shallow, only 35 thousands deep. There is no impact in the way the gun functions. Cuts on the Performance Center slides are a bit deeper, hence a lighter slide, and they use the same recoil spring.

Change in total weight is too little to present an issue...

Hope this helps...

Guzzi
Reply With Quote
The Following 5 Users Like Post:
  #15
Old 11-26-2021, 08:51 AM
cmj8591's Avatar
cmj8591 cmj8591 is offline
Member
M6946 Project
Join Date: Jul 2007
Location: Massachusetts, USA
Posts: 1,604
Likes: 615
Liked 2,186 Times in 847 Posts
Default

The photos make it look like you are taking way more material off than .035. That small of a change in the slide weight shouldn't matter much in real life. Nice modification. It really makes the gun look custom.
Reply With Quote
The Following User Likes This Post:
  #16
Old 11-26-2021, 03:08 PM
guzzitaco's Avatar
guzzitaco guzzitaco is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Sep 2018
Location: Pompano Beach, FL
Posts: 440
Likes: 849
Liked 1,507 Times in 287 Posts
Default

yes, only 35thou per side...

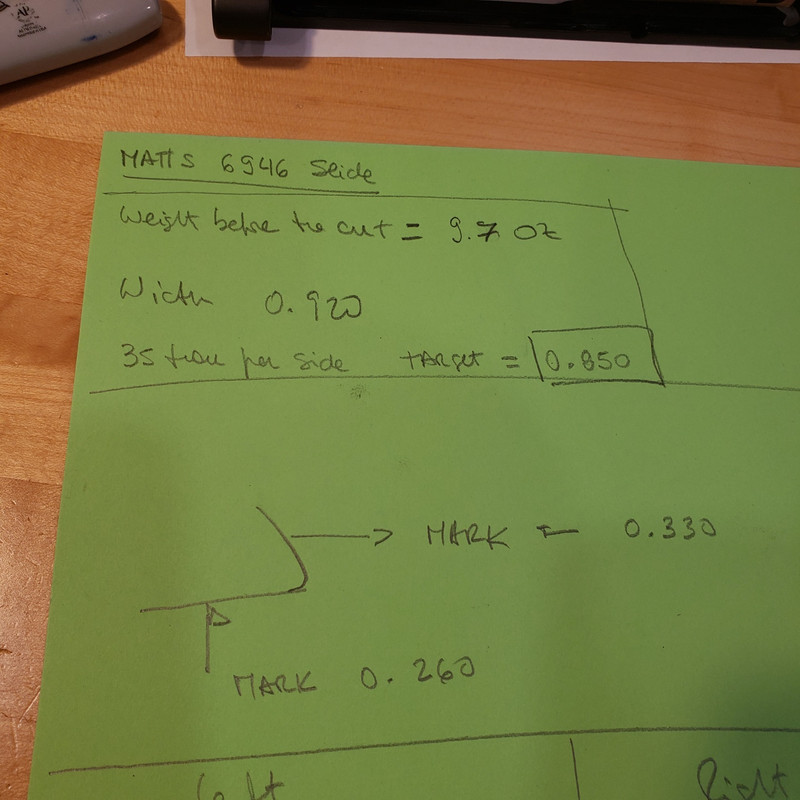

plan...

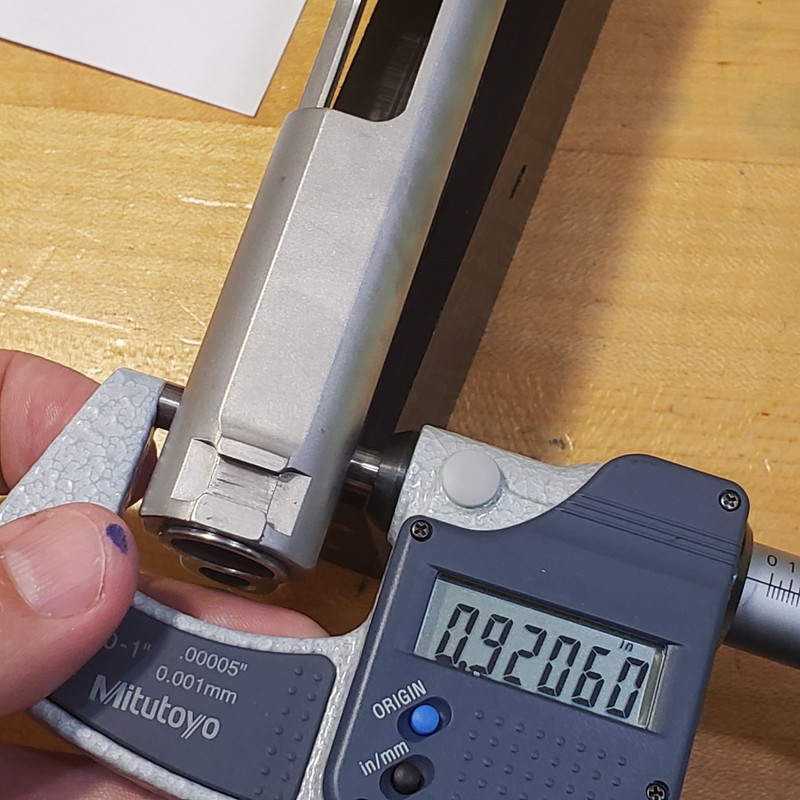

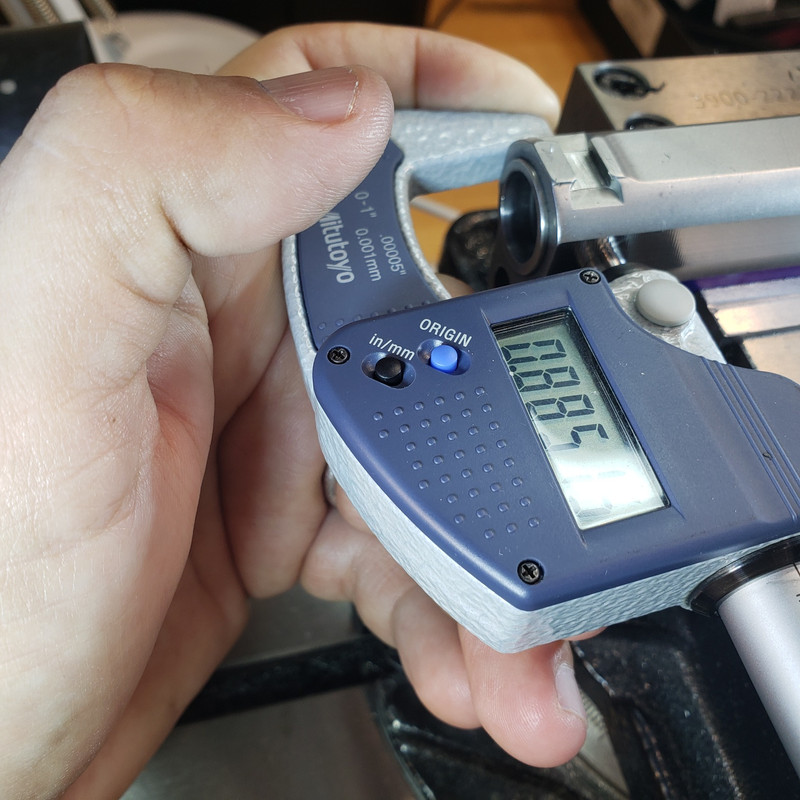

initial measuring...


end on left side...

forgot to take pics of the right side...but it is right there at 0.850"

more to come...
Reply With Quote
The Following 7 Users Like Post:
  #17
Old 11-28-2021, 12:24 AM
guzzitaco's Avatar
guzzitaco guzzitaco is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Sep 2018
Location: Pompano Beach, FL
Posts: 440
Likes: 849
Liked 1,507 Times in 287 Posts
Default

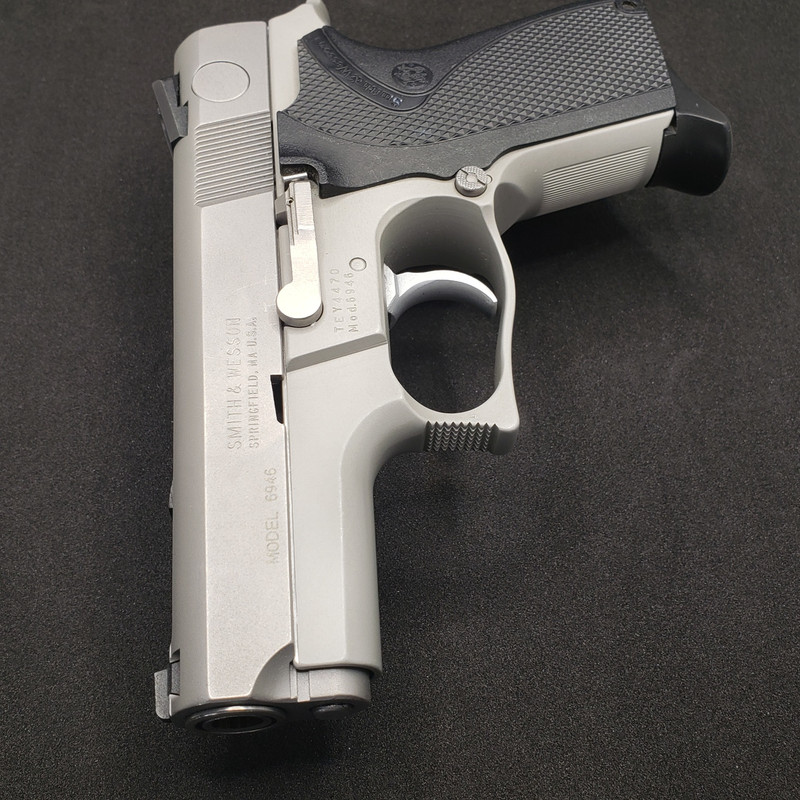

Blasted, brushed and started to put things together...


took me some time to remove a major ding here...


installed the sights...was concerned about scratching something...

She was ready...


















more to come...

Reply With Quote
  #18
Old 11-28-2021, 11:47 AM
Heymatt Heymatt is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Jan 2019
Location: SE Fla
Posts: 417
Likes: 457
Liked 673 Times in 251 Posts
Default

Dayuum! That looks awesome��
Reply With Quote
The Following 3 Users Like Post:
  #19
Old 11-29-2021, 12:08 AM
veeklog1 veeklog1 is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Mar 2013
Posts: 147
Likes: 964
Liked 259 Times in 93 Posts
Default

Another work,of beauty
Reply With Quote
The Following User Likes This Post:
  #20
Old 12-24-2021, 08:10 AM
guzzitaco's Avatar
guzzitaco guzzitaco is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Sep 2018
Location: Pompano Beach, FL
Posts: 440
Likes: 849
Liked 1,507 Times in 287 Posts
Default

Hi guys...

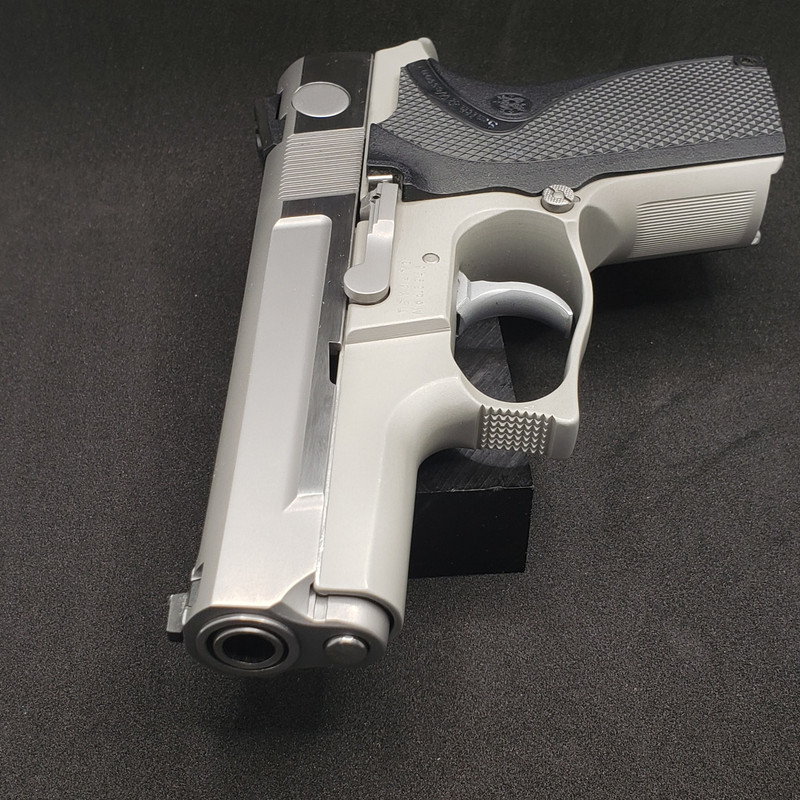

Matt stopped by to get this M6946...we took some pics of the complete gun...(sorry there are not many pics, I was in a hurry to take the kids to the movies...)


M6946 with the original slide


original slide stop


modified "spare" slide




polished barrel bushing and guide rod

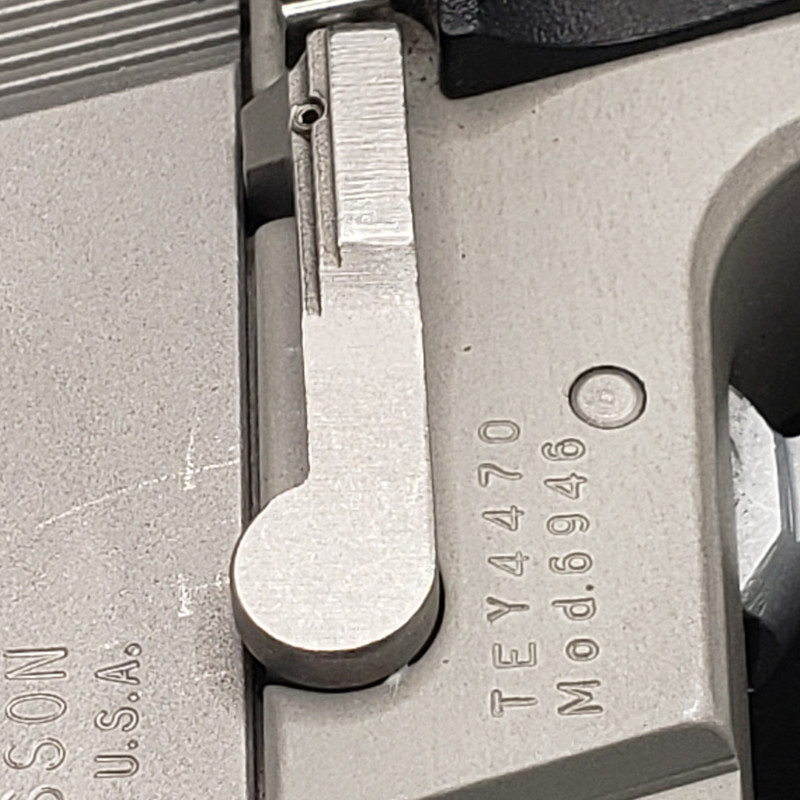

restored "spare" slide stop



hope you guys like it...

Guzzi
Reply With Quote
  #21
Old 12-24-2021, 08:58 AM
Ampoyet Ampoyet is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: May 2021
Location: Florida
Posts: 13
Likes: 2
Liked 19 Times in 9 Posts
Default

Love the polished scallop. What a work of art.
Reply With Quote
The Following User Likes This Post:
  #22
Old 12-24-2021, 10:12 AM
cherrypointmarine's Avatar
cherrypointmarine cherrypointmarine is offline
SWCA Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Jul 2013
Location: Oviedo,Fl
Posts: 1,934
Likes: 512
Liked 4,096 Times in 1,283 Posts
Default

As always , you went beyond what one could imagine . Can't wait to see my 908S .
Reply With Quote
The Following 2 Users Like Post:
  #23
Old 12-24-2021, 11:09 AM
GaryS's Avatar
GaryS GaryS is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Nov 2009
Location: Wolkenkuckucksheim
Posts: 10,277
Likes: 8,127
Liked 15,259 Times in 5,912 Posts
Default

Time for me to line up some work on my 457S.
__________________
Can open, worms everywhere.
Reply With Quote
The Following User Likes This Post:
  #24
Old 12-24-2021, 03:45 PM
Heymatt Heymatt is offline
Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Jan 2019
Location: SE Fla
Posts: 417
Likes: 457
Liked 673 Times in 251 Posts
Default

"hope you guys like it...

Guzzi"


I know I do!!!

Last edited by Heymatt; 12-24-2021 at 03:48 PM.
Reply With Quote
The Following User Likes This Post:
  #25
Old 12-24-2021, 04:14 PM
cherrypointmarine's Avatar
cherrypointmarine cherrypointmarine is offline
SWCA Member
M6946 Project M6946 Project M6946 Project M6946 Project M6946 Project
Join Date: Jul 2013
Location: Oviedo,Fl
Posts: 1,934
Likes: 512
Liked 4,096 Times in 1,283 Posts
Default

I too have a 457S , nib . I was considering sending it , but the 908S won pout . He's also working on my CS40 slide . This way I'll have a whole top end I can change out for 10mm . We are truly lucky to have guzzitaco and BMCM here on the forum to work on our children .
Reply With Quote
The Following 2 Users Like Post:
Reply

Thread Tools
Display Modes

Posting Rules
Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Another project done, what's next David LaPell The Lounge 3 09-16-2013 06:03 PM
new project..help! Ezekiel555 Smith & Wesson M&P 15-22 8 05-13-2013 09:05 PM
In need of a lot of help M27 project younggun456 S&W Revolvers: 1961 to 1980 5 04-29-2013 09:23 PM
19-2 Project Gun flyandscuba S&W Revolvers: 1961 to 1980 33 02-03-2011 09:55 PM
project 36 lagavulin62 S&W Revolvers: 1961 to 1980 2 10-24-2010 06:56 PM

Powered by vBadvanced CMPS v3.2.3
smith-wessonforum.com tested by Norton Internet Security smith-wessonforum.com tested by McAfee Internet Security

All times are GMT -4. The time now is 10:49 AM.


Search Engine Optimisation provided by DragonByte SEO v2.0.42 (Pro) - vBulletin Mods & Addons Copyright © 2022 DragonByte Technologies Ltd.
Smith-WessonForum.com is not affiliated with Smith & Wesson Holding Corporation (NASDAQ Global Select: SWHC)
