3913 356TSW ???

[ACEd]

Saw a 3913 listed as 356TSW with what appears to be a Performance Center barrel and standard 3913 magazine. Appears completely 3913 except for barrel marking visible in ejection port. VCZ7140. No info on conversion - maybe Performance Center, but not so marked.

Anyone ever see such an animal from factory or Performance Center? Wondering about whether 3913 frame is up to it and whether mag feed might be an issue?



[SmithNut]

Saw a 3913 listed as 356TSW with what appears to be a Performance Center barrel and standard 3913 magazine. Appears completely 3913 except for barrel marking visible in ejection port. VCZ7140. No info on conversion - maybe Performance Center, but not so marked.

Anyone ever see such an animal from factory or Performance Center? Wondering about whether 3913 frame is up to it and whether mag feed might be an issue?

Never heard of such an animal.....

Maybe someone sent their 3913 to the Performance Center for work.

Question, does the barrel have the Briley bushing like traditionally seen on PC autos??



[Rule3]

There are/was 3913 TSW.s Stamped Tactical



Product code 104530 and 104531



[ACEd]

Never heard of such an animal.....

Maybe someone sent their 3913 to the Performance Center for work.

Question, does the barrel have the Briley bushing like traditionally seen on PC autos??

NOT 3913TSW.
All i have seen are pictures, but it appears to have standard 3913 barrel tip for conventional (not Briley) bushing (at least not same as my Shorty40 with straight barrel and brass bushing).
Also appears to have the thin recoil guide rod like the late 4013 and 4516-2 that had dual recoil spring as adapted with the guide rod bushing like the 4516 retrofits.



[SmithNut]

There are/was 3913 TSW.s Stamped Tactical



Product code 104530 and 104531

Yes, but did those shoot the 356TSW round???

Unless I'm not reading it right, the OP mentions the 356TSW (assuming cartridge).



[SmithNut]

NOT 3913TSW.
All i have seen are pictures, but it appears to have standard 3913 barrel tip for conventional (not Briley) bushing (at least not same as my Shorty40 with straight barrel and brass bushing.
Also appears to have the thin recoil guide rod like the late 4013 and 4516-2 that had dual recoil spring as adapted with the guide rod bushing like the 4516 retrofits.

My guess is that a previous owner sent it to the PC to bore out the barrel to the 356 TSW specs (9 x 21.5), versus a 9mm (9 x 19). Probably a stronger recoil spring as well. The ammo will fit in standard 9mm mags...



[SmithNut]

That's an interesting barrel, would like to get my hands on one to install on one of my 3953/54 DAO guns... would be a great carry cartridge.
The original guns were all steel, including the Stocking Dealer model.



[ACEd]

There are/was 3913 TSW.s Stamped Tactical



Product code 104530 and 104531

Standard 3913 frame - NOT 3913TSW
Top of barrel as seen thru ejection port marked 356TSW Performance - but otherwise standard 3913 markings - no PC or other unusual markings.



[ACEd]

That's an interesting barrel, would like to get my hands on one to install on one of my 3953/54 DAO guns... would be a great carry cartridge.
The original guns were all steel, including the Stocking Dealer model.

Thanks for confirmation on All STEEL frames for factory 356TSW pistols. Hence my concern about potential long term issues with Aluminum frame of the 3913.
I have seen an early cracked frame 4006 and have seen significant bearing wear / damage on frame side of barrel ramp from using hot ammo in 3rd gen Aluminum framed pistols.
Maybe switching to a dual recoil spring is sufficient to address the ramp bearing issue, but I would still be concerned.



[BLUEDOT37]

Thanks for confirmation on All STEEL frames for factory 356TSW pistols. Hence my concern about potential long term issues with Aluminum frame of the 3913.

Factory ammo is expensive & if you handload 356TSW brass is hard to find though you can make your own by trimming S-L 9x23SC brass shorter.

Either way you'll hate loosing your specialty brass so you might not shoot it enough to hurt it.
.

Saw a 3913 listed as 356TSW with what appears to be a Performance Center barrel and standard 3913 magazine.
Wondering... whether mag feed might be an issue?

The 356TSW (9x21.5) has the same max COAL" (1.169") as the 9mm Parabellum (9x19), just the case is longer (the same relation as the 45ACP & 460 Roland have), so there shouldn't be a feeding issue, from that standpoint.

It could just be a standard 3913 barrel with the chamber shoulder/ledge cut 2.5mm deeper.

The 9x19 barrel designation could have been smoothed off & re-stamped with the 356TSW designation using a font similar to what the factory used on the 356TSW?

.
view of my 3566 Limited's lettering



.



[Les Greevy]

S&W 3913 in .356TSW

I just bought this gun from GB. I am told by the seller that the guy he bought it from worked at S&W. The gun appears unfired.

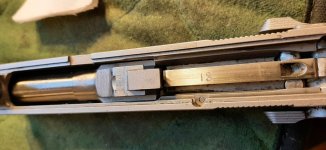

I have attached photos showing both the underneath of the slide and the barrel marked apparently by hand 18 or maybe 81.

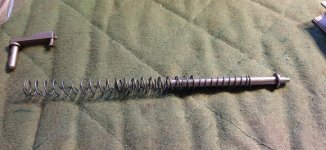

The other photo shows two recoil springs and the guide rod. As shown in prior photos the top of the barrel is marked .356TSW over Performance. Not sure what that means. Is this gun a R&D, a one off or a lunch bucket special.
I am primarily a revolver guy and have a 940 PC in .356TSW that I normally load within 9 mm pressures, so I am not so worried about the aluminum frame.
I would be interested in getting a 9mm barrel, springs, bushing etc. so I would have that option but the current .356TSW barrel does not want to come out.
Any thoughts?
Les



[BLUEDOT37]

I just bought this gun from GB. I am told by the seller that the guy he bought it from worked at S&W.

Congrats on your find!

Those two digits hand engraved in the barrel (& slide) are normal markings that the assemblers in the S&W Performance Center put on these finely hand fitted pistols.

All of the 3566 Limited's (I guess that's what you bought?? Need more info ) have their barrel stamped that way on the hood.

I don't know what's up with the double recoil spring setup? Either someone made their own "replacement recoil spring" (because the exact PN# for the factory recoil spring is unknown, though I've posted what will work in its place) or it was a early/later mod by the factory?

What is your SN#, minus the last two numbers if you don't want to reveal them?

You probably can still get a 9x19 barrel from Briley for a 3566 Limited. Make sure you get it fitted from them. Let me look up who you need to contact for that, if you're interested? Five years ago when I got mine they were $300.

PS: Can you measure the exact diameter of your guide rod? As far is I know the 3566's only had a single recoil spring on a .290" dia guide rod. Guide rods that were designed to work with double/nested recoil springs (like the 4013TSW etc.) had a skinnier guide rod that was .237" in dia.

The factory barrels are closely fitted but should slide out at the proper angle.

We don't know what you have exactly because to haven't shown up the whole pistol & you piggy-backed on this thread of a unknown model. S&W made several variations of 356TSW pistols. You need to post more pics & details if you want the proper answers.

.



[JohnHL]

I just bought this gun from GB. I am told by the seller that the guy he bought it from worked at S&W. The gun appears unfired.
I have attached photos showing both the underneath of the slide and the barrel marked apparently by hand 18 or maybe 81.
The other photo shows two recoil springs and the guide rod. As shown in prior photos the top of the barrel is marked .356TSW over Performance. Not sure what that means. Is this gun a R&D, a one off or a lunch bucket special.
I am primarily a revolver guy and have a 940 PC in .356TSW that I normally load within 9 mm pressures, so I am not so worried about the aluminum frame.
I would be interested in getting a 9mm barrel, springs, bushing etc. so I would have that option but the current .356TSW barrel does not want to come out.
Any thoughts?
Les

Les, when I hear someone say their barrel won't come out, I tell them this little trick:

Remove the slide and barrel assembly from the frame.

Hold the slide and barrel assembly right side up OVER A PADDED SURFACE (this is important) with the barrel unsupported and the rear (chamber end) of the barrel hanging down.

Push the rear of the barrel up and let it drop.

It will usually fall right out.

John



[Heymatt]

Here’s the listing from GB with all the pics
Just a moment...



[colt_saa]

Saw a 3913 listed as 356TSW with what appears to be a Performance Center barrel and standard 3913 magazine. Appears completely 3913 except for barrel marking visible in ejection port. VCZ7140. No info on conversion - maybe Performance Center, but not so marked.

Anyone ever see such an animal from factory or Performance Center? Wondering about whether 3913 frame is up to it and whether mag feed might be an issue?

Many firearms that left the factories as 9MM have been converted to the 356TSW cartridge

This is my 6904 Super-9

It has barrels for 9MM, 9x21 and 356TSW.

I have converted many firearms over the decades. I have a Mossberg Camp Carbine that is also now chambered in 356TSW. I thing these two are cool since ther share magazines

True the alloy frames will not last as long as the steel frames, it will also have more felt recoil due to the lighter weight

As long as you are using an upgraded spring, the service life should be satisfactory

This is a great cartridge that could have been an awesome Law Enforcement cartridge that suffered from being introduced in the wrong way at the wrong time



[Les Greevy]

S&W 3913 in .356TSW

Bluedot37,
Gun is 3913. SN is VcZ 71xx
Haymatt has posted link to 25 photos from GB.
Guide rod is .236" in diameter.
Please give me contact at Briley.
Thanks.
Les



[Les Greevy]

S&W 3913 in .356TSW

John,
Tried that.
Barrel is loose but hood of the barrel will just not clear the slide.
Les



[Heymatt]

Slide the barrel forward about 1/2” then lift from the feed ramp. Then pull the barrel to the rear of the slide. Should come right out.



[hoytx10]

I’m glad someone on the forum bought this pistol. I was intently watching the auction and debating whether or not to bid. Please continue to post about it. It makes me think that this conversion was done at the factory based on the barrel markings and electro pencil markings.

Are you able to spin the barrel at all? Maybe it needs to come out a little cockeyed.



[Les Greevy]

I have done all that.
I see where the hood is contacting the slide. I think the bushing is tight and will not allow the barrel enough movement to drop out.
