15-22 Satisfaction
- Thread starter Candyman
- Start date
Slackpacker
Member
- Joined
- Jan 30, 2010
- Messages
- 28
- Reaction score
- 0
You make a valid point. I guess, because of the blue follower, that is not something I had considered.
rip, that was your article about the 22lr 25 rd new mags. Do they work better or not?
I have not had one problem yet with the new one that has "25 ROUND" printed on the side.
I am still getting a few mag snags with the old ones.
ok so to clear this up a bit.
Before I had the OOB I had 4 old mags. I sent one with my gun to smith to have the gun fixed.
When the gun came back the spec sheet said "replaced magazine" and I got the new magazine.
the old mags still have mag snag issues where the bullet gets stuck standing up in the mag and the bullet gets dented by the bolt.
the new mag has had NO problems.
pictures show the difference in the mags.
Before I had the OOB I had 4 old mags. I sent one with my gun to smith to have the gun fixed.
When the gun came back the spec sheet said "replaced magazine" and I got the new magazine.
the old mags still have mag snag issues where the bullet gets stuck standing up in the mag and the bullet gets dented by the bolt.
the new mag has had NO problems.
pictures show the difference in the mags.
Attachments
The magazine that came with my rifle only has ".22 LR" on it. The other 4 magazines that I picked up at the same time have the same thing. My rifle has a DTB serial. I've had zero FTF's, FTE's or misfires in over 3000 rounds except for the one excepting that bounced off my thumb that was blocking the ejection port. I only run Federal/AE 40 grn solids, Federal 36 grn hp, and mini mags.
Last edited:
ChattanoogaPhil
Member
- Joined
- Oct 18, 2009
- Messages
- 14,601
- Reaction score
- 20,622
That sounds good. I'm wondering how old is old cuz mine are pretty beat up and look to have an even deeper cut into the mag than 4mm of yours. Maybe the depth difference is from wear rather than new design?
Sorry for the poor pic. I have never cleaned mine so there isn't much red to see. I picked at the follower with my finger nail a bit though. That's as good as it gets.
Attachments
I am still a bit confused as to which version is 1st or 2nd Gen. Valid points have been made by many. I attached a picture of two of my mags.
The mag on the left is (I call it 1st Gen) what came with my DTHxxxx 15-22 in early October 2009. I also ordered 3 additional mags from S&W at the same time. I waited 3 or 4 weeks and they arrived. I then had 4 mags that all appear just as the picture shows on the left; 22 LR with 25 ROUND underneath.
The earliest anyone could purchase a 15-22 here locally was Oct. 2009. I was one of the first to buy. I only received the 2 complimentary mags with 22 LR only on them after my rifle went in for extractor repair.
All mags work fine now, but I didn't even know there was a difference until I received the two complimentary ones. Phil has a DTHxxxx and he states his has 22 LR only; so it beats me which is 1st or 2nd gen I am just glad everything works fine now.
The mag on the left is (I call it 1st Gen) what came with my DTHxxxx 15-22 in early October 2009. I also ordered 3 additional mags from S&W at the same time. I waited 3 or 4 weeks and they arrived. I then had 4 mags that all appear just as the picture shows on the left; 22 LR with 25 ROUND underneath.
The earliest anyone could purchase a 15-22 here locally was Oct. 2009. I was one of the first to buy. I only received the 2 complimentary mags with 22 LR only on them after my rifle went in for extractor repair.
All mags work fine now, but I didn't even know there was a difference until I received the two complimentary ones. Phil has a DTHxxxx and he states his has 22 LR only; so it beats me which is 1st or 2nd gen I am just glad everything works fine now.
Attachments
ChattanoogaPhil
Member
- Joined
- Oct 18, 2009
- Messages
- 14,601
- Reaction score
- 20,622
I'd like to make sure we're comparing two UNUSED mags. One stamped 22lr and the other 22lr 25rd. I wonder if it is wear that Rip is measuring 3mm/4mm and maybe not a design change. I dunknow...
ChattanoogaPhil
Member
- Joined
- Oct 18, 2009
- Messages
- 14,601
- Reaction score
- 20,622
10-4. Mine are probably just wallowed out from abuse.
CORPORAL PUNISHMENT
Member
The pictures don't appear to be wear. What i'm more concerned w/ is the angle of the top round on the 22lr 25 rd mag. That could be huge
The pictures don't appear to be wear. What i'm more concerned w/ is the angle of the top round on the 22lr 25 rd mag. That could be huge
that is what I tried saying here http://smith-wessonforum.com/smith-...-new-25-round-15-22-magazine.html#post1280259
ChattanoogaPhil
Member
- Joined
- Oct 18, 2009
- Messages
- 14,601
- Reaction score
- 20,622
I've been lamenting about the round not fully lifting into position in the mag for months. With a dozen rounds in the mag, I pull down abuot one round height on ALAB and let back up. Sometimes the top round doesn't fully lift. But your pics are with a round hanging half way out of the magazine.
Load em both up with a dozen or so rounds and see if there is really any difference in lift and angle between the two mags. I'd be interested to know.
CORPORAL PUNISHMENT
Member
Yeah, Rip could you post some picks with the mag loaded up some? I think that would truly help. Or anybody else that has these 2 different labled mags. To me it would make sense that the NEW mags would be labled 25 rd because the ca compliant version came out 2nd and that way they could tell the difference.
Hear ya go sorry it took so long,

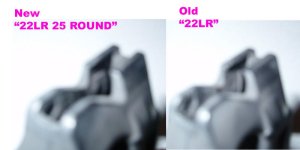

When I took the pictures this time I kept the bullet as far back as it could go and where it would normally be when you would go to load the mag into the gun.
As you can clearly see the bullet is sitting at a higher angle with the new mag(22LR 22 round).
I took the mags apart and looked at the orange followers and they are exactly the same.
The only thing that would make this difference would then have to be the black housing of the mag. So I started the tear down of the mags and started looking around.

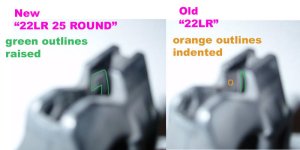

The pictures are not very god but it should be good enough to see that there is a difference in the top of the tracks where the bullet slides. I tried outlining the differences. The green outline shows a raised sections and the orange shows indented sections. The green outline is the track that the bullets follow when sliding up and down.
Attachments
CORPORAL PUNISHMENT
Member
ChattanoogaPhil
Member
- Joined
- Oct 18, 2009
- Messages
- 14,601
- Reaction score
- 20,622
I guess we had the right idea months ago... it's just that my dremmel could only remove material... not add it. Thanks for the pics.
BeginingOfTheEnd
Member
On Candyman"s pic, did anyone else notice the posible difference in the spring? Look at the spring where it goes around the follower and compare it to the ohter as you move down, one on the right looks spaced wider than the left.
